Victorian Tessellated Tiled Hallway Restored in Bounds Green

Bounds Green in North London has more than its fair share of Victorian terraced houses packed with desirable original features. When the owners of this house pulled up their hallway carpet they were excited to discover a beautiful and original black and white Tessellated tiled floor.

Victorian Hallway Before Restoration and Repair Bounds Green Lifting Carpet Victorian Hallway Before Restoration and Repair Bounds Green

Tessellated tiled floors became fashionable from the 1860s and usually featured striking geometric patterns. By the end of the century they had become an essential feature in the most ordinary Victorian terraced houses from Dover to Aberdeen. They fell out of fashion in the 1960s and 70s and were usually covered over with carpet or linoleum, but period house owners today understand their value and are restoring them back their former glory. A well-restored tessellated tiled floor not only looks incredibly attractive but is durable and hard wearing. They were originally laid by highly skilled tillers and most have already survived 100 years of family wear and tear. With the right care they will probably be good for another 100 years.

Restoring a Victorian Tessellated Tiled Floor

The first thing we did was cut away the rest of the carpet to expose the whole hallway. The floor looked in a relatively stable condition, but it was clear the floor needed a deep clean and some minor repairs.

Victorian Hallway Before Restoration and Repair Bounds Green Victorian Hallway During Restoration and Repair Bounds Green

We started off by cleaning off each individual tile with Tile Doctor Remove and Go, a multi-purpose stripper that also draws out ingrained stains and removes old sealers and coatings; this took away all the glue and dirt from the carpet. We then applied Tile Doctor Nanotech HBU which is specially designed to penetrate below tough stains, dissolve and lift them out. We left that for twenty minutes for maximum effect before lightly scrubbing. Each tile was then individually scrapped with polypropylene pads.

The next step was to remove the resultant soil by rinsing with water and extracting with a wet vacuum. We steamed cleaned each tile and carried out a second clean with Tile Doctor Pro-Clean which is a strong cleaner and degreaser for heavily soiled and neglected tile, stone and grout that has been neglected or subjected to heavy use.

By now the floor was looking pretty good. The beautiful black and white design of the floor was once again in evidence after decades of being hidden under carpet. There were just a few more steps to complete the job and restore this floor to its original glory. We carried out the minor repairs needed, carefully re-grouted the very fine gaps between the tiles and left the floor overnight for the grout to thoroughly dry.

Sealing a Victorian Tessellated Tiled Hallway Floor

The next day we sealed the tiles with five coats of Tile Doctor Seal and Go to give a beautiful and natural low-sheen satin finish. This specially formulated solution also provides a stain resistant surface seal and being water based it doesn’t leave a smell as it dries.

Victorian Hallway After Restoration and Repair Bounds Green

We managed to complete the whole job in just under two days with two of our skilfully-trained technicians. Our customer was delighted with the outcome and left the following message for us on the Tile Doctor feedback system:

“The team worked hard at what seemed a fiddly job and we are very pleased with the outcome. I would recommend.” Natalie G, Bounds Green, London”

Victorian Hallway After Restoration and Repair Bounds Green



Source: Tessellated Tile Cleaning and Sealing Service in North London

Victorian Tiled Hallway Repaired and Restored following Central Heating Installation in North London

The owners of this property in Palmers Green, North London had uncovered an original Victorian hallway floor during renovation work. However, the priority was to have a new central heating system installed so they had to make a decision to allow the heating engineer to rip up part of the floor in order to lay new pipes.

With the floor now missing a large section most customers would agree to have the hole back-filled with concrete and then have lino installed on top, however keen to have the floor restored as an original feature they reached out to Tile Doctor who have a lot of experience in this field.

Our brief was to infill the excavated section and reinstate the floor with new original style Victorian tiles to match the existing ones.

Victorian Tiled Hallway Before Cleaning Palmers Green

Deep Cleaning a Victorian Tiled Hallway

The existing floor had been covered in Carpet which had been secured using carpet gripper fixed to the floor using adhesive, there were also old paint splashes from decorating that would need to be removed. Our first job therefore was to remove the glue and paint by applying a strong dilution of Tile Doctor Remove & Go which is a coatings remover especially designed for use on tile and stone. The product was applied, left to dwell for about twenty minutes and then scrubbed into the floor, this softened the paint and glue which could then be carefully scrapped off tile tiles.

The next step was to give the floor a deep clean with a strong solution of Tile Doctor Pro-Clean to strip off what remained of old sealers and extract any ground-in dirt from the pores of the tile. Naturally this work had to be done in two sections due to the missing tiled section and then once complete each part of the floor was given a good rinse and the slurry extracted using a wet vacuum.

The floor was then inspected and a second clean was carried out to remove any stubborn staining or residue followed by a steam clean.

Rebuilding a Victorian Tiled Hallway

Following the two stages of cleaning we checked the existing floor pattern and prepared the hallway by levelling the floor in preparation for inlaying the new tiles which were chosen to offer the best possible match. We were able to source reclaimed tiles that would match up to the pattern and during this phase of the restoration work we carried out any loose tile and grout repairs and re-grouted the newly laid tiles.

Sealing Victorian Hallway Tiles

With the original tiles clean and the hallway rebuilt we left the floor to dry off fully overnight.

On our return we first checked the tiled were dry and that the grout in the new section was clear of any grout smears from the tiling work. Happy with the condition of the hallway we first applied a coat of Tile Doctor Colour Grow which is an impregnating sealer that will protect the tiles from within by occupying the pores within the tile, it also enhanced the colours in the clay tile.

Once the first coat of sealer was dry it was followed by five coats of Tile Doctor Seal & Go which adds further layers of protection and adds a nice subtle satin finish that works really well on Victorian tiles.

Victorian Tiled Hallway After Cleaning Palmers Green

The work went very well, and the sealer consolidated the new and old tiled sections to form a seamless floor.


Source: Victorian Tile Cleaning and Restoration Service in Palmers Green, London

Victorian Tiled Hallway Renovated in Oxford

The Victorian tiled hallway shown below had until recently been covered by carpet and was in surprisingly good condition for its age which is a testament to the durability of these floors. My client who lives in Oxford had managed to remove most of the glue that had been used to secure the carpet to the tile but found it had left an imprint on the floor. Unable to take the restoration any further we were asked to remove the ground in grime and seal the floor.

Carpet Covered Victorian Tiled Floor Before Cleaning Oxford

Restoring Victorian Quarry Tiles

My first task was to remove what was left of the carpet adhesive primarily with the aid of scraper which was used carefully along the edges. This removed the thicker parts of the glue but needed more work to remove all the traces; so a 50 grit disc fitted to a handheld machine was run around the edges of the whole floor to complete the job removing the residue and dirt in the process.

I then used a 50 grit milling pad attached to a rotary floor machine to remove the ground in grime and clean the whole floor. The floor was then rinsed with water to remove the soil that was generated afterwards and then the process repeated this with a 100 grit and 200 grit milling pad to fully restore the appearance of the tile.

This process took up most of the day so before leaving I gave the floor an acid wash using a mild dilution of Tile Doctor Grout Clean-up and then followed this with a good rinse and final clean with Tile Doctor Neutral Cleaner.

Sealing Victorian Tiles

Having finished cleaning the floor I left it to dry off completely for three days to ensure it was bone dry before returning to seal it.

To seal I applied Tile Doctor Colour Grow which is an impregnating sealer that protects the tile from within by occupying the pores in the clay, it also enhances the natural colours in the tile in the process and leaves a matt finish.

Carpet Covered Victorian Tiled Floor After Cleaning Oxford

The finished floor looks a lot brighter now it’s now free of all the dirt and glue marks, the new sealer will also ensure it’s easy to clean and keeps its appearance for some time to come.


Source: Victorian Tile Cleaning and Sealing Service in Oxfordshire

Refreshing a Victorian Tiled Hallway

Coalvile in the heart of the Midlands was a coal mining town and with that history has many period properties with traditional floors including the one in this post which has a Victorian tiled hallway. The tiles were in good physical condition for their age but were now looking faded and lifeless due to a build-up of ingrained dirt in the tile and were now overdue for a deep clean and re-seal.

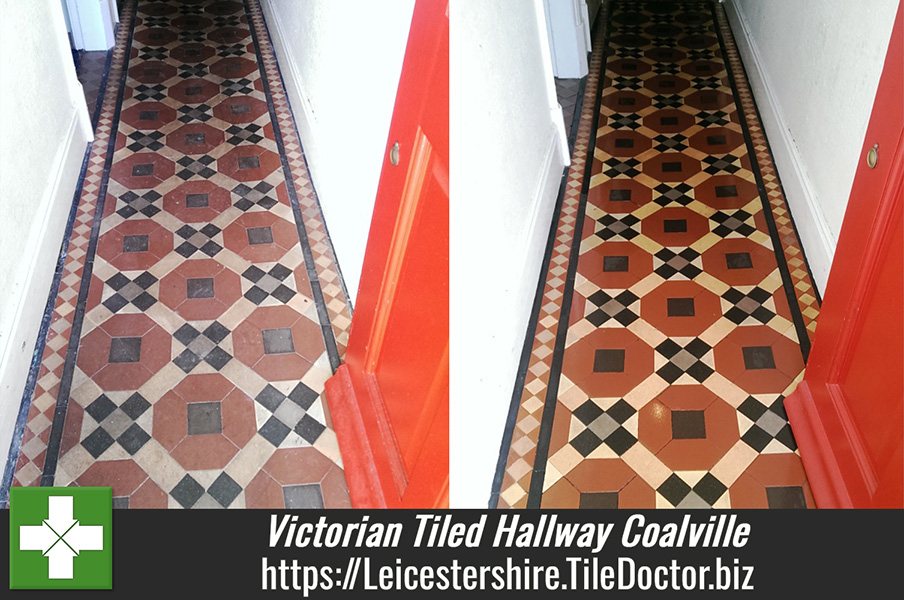

Victorian Tiled Hallway Before Cleaning in Coalvile

Cleaning Victorian Hallway Tiles

Before I could seal the floor it would need to be stripped of any old coatings and in the process given a really good clean. To do this I applied a dilution of Tile Doctor Remove and Go and left it for to soak in to the tiles for about 15-20 minutes before scrubbing it in with a rotary buffing machine fitted with a black scrubbing pad.

Once the whole floor had been scrubbed it was washed down with water which was then removed using a wet vacuum. Stubborn areas were then re-treated and grout lines also scrubbed using more Remove and Go and a stiff brush. Last step of the cleaning process was to give the floor a thorough rinse with more water to remove any trace of cleaning product and then as much was as possible was extracted using the wet vacuum. I wanted to seal the floor the next day so it was important to get the floor as dry as possible.

Sealing Victorian Hallway Tiles

I returned the next day to seal the floor and the work I spent into getting it dry was well spent as the floor had dried fully overnight and I was able to seal the Victorian tiles with two coats of Colour Grow which is an impregnating sealer that enhances colour and occupies the pores in the tile so contaminates can’t become ingrained in there. Colour Grow also provided the matt finish the customer wanted.

Victorian Tiled Hallway After Cleaning in Coalvile



Source: Tile, Stone and Grout Cleaning in Leicestershire

Victorian Tile Restoration in Wiltshire

This customer had just brought a house in Chippenham which they were renovating and it had come to their attention that Victorian tiles had been laid under the hallway carpet. Keen to restore them the customer called us in to see if we could enhance the appearance of their floor.

Cleaning Victorian Tiles

We started by covering the floor with a mild solution of Tile Doctor Pro-Clean mixed 50/50 with NanoTech Ultra Clean, this combination creates a powerful cleaning solution for tackling ingrained dirt and staining. The solution was left to dwell on the tile for twenty minutes and then scrubbed into the tile using a black pad attached to a rotary machine. This process was quite effective and the cleaning solution turned colour with the dirt as it came off the tile. Once we were happy we had removed all the dirt the now dirty cleaning solution was removed using a wet vacuum and the floor rinsed several times with cold water to remove any trace of cleaning product.

Victorian Tiled Floor Chippenham During Cleaning

With the floor now clean it became evident that there were paint spots along the edges which we removed by applying Tile Doctor Remove & Go this time leaving it to dwell for five to ten minutes before agitating with a stiff deck brush. Once again we used a wet vacuum to remove any product and rinsed the floor using cold water.

Sealing Victorian Tiles

We left the floor to dry overnight and returned the next day to seal the tiles. Upon our return we first used a damp meter to confirm that the floor was dry enough to seal which it was. We then sealed the floor with five coats of Tile Doctor Seal & Go which will protect the floor from staining and make it easy to clean, Seal and Go also adds a nice shine to the tile enhancing the colours and general appearance of the tiles.

Victorian Tiled Floor Chippenham After Cleaning and Sealing Victorian Tiled Floor Chippenham After Cleaning and Sealing

We definitely achieved the customer’s goal to enhance the look of the floor and before leaving we gave them some cleaning tips to prolong the life of the sealer by recommending the use of a Tile Doctor Neutral Tile Cleaner which won’t eat into the sealer like the mildly acidic tile cleaning products that you buy in the supermarket.


Source: Residential and Commercial Tile Cleaning in Chippenham

Removing Glue From Victorian Floor Tiles

This Victorian Tiled Hallway at a house in Radford near Coventry had been well preserved under a carpet for many years and the owners of the house now wanted it brought back to life. Physically the tiles were in good condition however they did suffer from the usual issues of paint splashes and adhesive stuck to the surface.

Victorian Tiled Floor Refresh Radford Before Victorian Tiled Floor Refresh Radford Before

Cleaning Victorian Tiles

To clean up the tiles and remove the paint and glue I used a dilution of Tile Doctor Remove and Go. The edges of the floor was done first as this was where the most pain splashes were to be found due to the skirting being painted at some point in the past. The usual procedure still applied allowing the product to soak in and soften the paint before being scrubbed off by hand. Once the edges were done I moved onto the main part of the floor using the same process however this time I had the advantage of being able to use a rotary machine fitted with a scrubbing pad. The dirty solution was rinsed away with water and removed with a wet vacuum.

To finish off and remove some signs of efflorescence (white salt stains) the tiles were then scrubbed in a dilution of Tile Doctor Grout Clean-Up. This did the trick but you can’t leave this product on the tiles for too long as its an acid so as soon as it had done its job it was washed off and then the tiles were then given a thorough wash down with clean water.

My work was done for the day so I left a fan running to help speed dry the floor overnight and left for the day.

Sealing Victorian floor tiles

I came back the next day to seal the floor using Tile Doctor Seal and Go sealer which provides stain protection as well giving a nice sheen to the tile, the tiles were quite porous and needed six coats before they were fully sealed.

Victorian Tiled Floor Refresh Radford After



Source: Residential and Commercial Tiled Floor Cleaning in Warwickshire

Victorian Tiled Floor Restoration

This Victorian tiled hallway and kitchen floor in Teddington, Middlesex, was in need of a deep clean including stripping out the old sealer and re-sealing to ensure easy maintenance in the future. Being a high traffic area the tiles had accumulated a high amount of soil over the years, there was also a lot of glue that had been used to stick carpet down in the past which had to be removed and there was heavy staining to the kitchen tiles from spillages over the years. If that wasn’t bad enough the owners of the house were in the middle of renovating the property so there was paint and plaster on the surface which would also need to be treated prior to sealing.

Victorian Hallway and Kitchen in Teddington Before Cleaning Victorian Hallway and Kitchen in Teddington Before Cleaning

Cleaning Victorian Tiles

In order to break down the glue and paint the affected areas were sprayed with Tile Doctor Remove and Go which was then left to soak in. Following 10 minutes dwell time I then proceeded to scrub off the glue and paint and the resulting soiled solution was rinsed away.

The next step was to scrub the entire tiled floor using a rotary machine fitted with a scrubbing pad and a strong dilution of Tile Doctor Pro-Clean high alkaline cleaner. This broke down the soil ingrained in the tile and released it along with the remaining old sealer; the floor was then pressure rinsed to ensure all of the dirt was removed from the pores and stubborn areas re-treated.

Sealing Victorian Tiles

The floor was then left alone to dry for twenty four hours before I came back to seal it for which I used four coats of Tile Doctor Seal and Go. This is a water based topical sealer that leaves no smell and provides a nice sheen to the floor; it will also repel liquids and dirt making it easier to maintain the tiles in the future.

Victorian Hallway and Kitchen in Teddington After Cleaning Victorian Hallway and Kitchen in Teddington After Cleaning

You can see from the photographs how the sealer has gives a high sheen finish to the tile which reflects the light and enhances the colours of the stone leaving the floor looking as good as new and very vibrant.


Source: Victorian Tile Restoration in Middlesex

Victorian Tile Restoration

You can’t beat a Victorian Tiled Hallway it’s such a practical and obvious choice, unfortunately however this floor at a house in Chester had been neglected over the years and covered up with carpet that had been glued to the tile.

Victorian floor Tiles Chester before cleaning

Restoring Victorian Floor Tiles

To remove the dirt, paint and carpet glue it was necessary to coat the floor in a strong dilution of Tile Doctor Remove and Go which as the name suggests is a powerful coatings remover that’s safe to use on tiles.

The solution was left to soak into the tiles in order to break down the glue and paint etc. before being scrubbed in using a rotary machine fitted with a black pad. This cleaned up most of the problems however there were a few stubborn areas on which we used a steamer to penetrate deep into the pores of the tile and lift out the stains. We then removed the soiled cleaning solution using a wet vacuum and give the floor a really thorough rinse.

Due to the age of the floor and house there was no damp proof installed under the floor and there was concern that even with a breathable sealer damp would become trapped under the tile, so we decided not to seal the tiles which is a shame as sealers do lift the appearance that much more. I think you will agree though the floor looks much improved.

Victorian floor Tiles Chester after cleaning



Source: Restoring Victorian Tiles in Cheshire

Restoring Badly Stained Victorian Tile

This classic Victorian tiled floor in Kingswood Kitchen; Cheshire was quite dirty and in need of a deep clean. Cleaning this type of floor is bread and butter for a Tile Doctor and so I had every confidence we could clean in and then re-seal it without any complications.

Victorian Floor Kingswood Before Cleaning 006 Victorian Floor Kingswood Before Cleaning 005

Cleaning a Stained Victorian Floor

In order to tack the ingrained dirt and I decided the best course of action would be to cover the Victorian Floor tiles with a 50/50 mix of Tile Doctor Pro-Clean and Nano-Tech UltraClean and leave it to work on the tile allowing the cleaner to break down any remaining previous sealer and in-grained dirt.

Victorian Floor Kingswood During Cleaning 007 Victorian Floor Kingswood During Cleaning 008

After about 30 minutes I steam cleaned the whole area multiple times to lift the ingrained dirt and grime out of the floor and then give the floor a thorough rinse removing the soiled solution using a wet vacuum. The floor was quite damp at this stage and needs to be dry to seal so we left it to dry overnight, we also left behind a dehumidifier to assist with the drying process.

Sealing a Victorian Floor

The next day we came back and tested the floor using a damp meter to make sure it was dry. Once we were satisfied we sealed the tiles using five coats of Tile Doctor Seal and Go which is ideal for Victorian tiles as it leaves an attractive low sheen finish, it’s also a water based sealer so there is no smell.

Victorian Floor Kingswood After Cleaning 012 Victorian Floor Kingswood After Cleaning 013



Source: Victorian Tile Restoration in North Cheshire

Restoring a Victorian Tiled Floor

Details below of a Victorian tiled floor that we cleaned and sealed at a house in Hale, Cheshire, you can see from the photographs below how poor a condition it was in however the tiles were structurally sound so we set about restoring it.

Victorian Tiled Floor Before Victorian Tiled Floor Before

Victorian Floor Deep Cleaning

The tiles were covered with thick layer of old resin, glue, trapped dirt, possibly wax as well, so the best system for this on Victorian Floor Tiles is to cover the Tiles with a 50/50 mix of Tile Doctor Remove and Go and NanoTech Ultra-Clean; the Remove and Go breaks down the wax, glues etc. while the Nano-Clean works deeper in to the tiles and encapsulates the trapped dirt. It does take time for this process to work however so to help the process along we soak the area with these products, cover over with a plastic sheet and then leave it. The plastic sheet this stops the products from drying out and also makes the floor sweat which works like a sauna to open up the pores of the Tiles. We then cover the plastic with Cotton Dust sheets and leave it like that overnight, the customer can still walk on the Floor area while the Treatment is in place.

The next day we lifted the plastic and steamed the whole area to help release the old trapped dirt and grime etc., the floor is then given a good rinse with clean water and we use a wet vacuum to remove the resultant slurry. We couldn’t seal the floor that day as it was still wet so the cotton sheets were put back on and switched on a dehumidifier to help speed up the drying process.

Victorian Tile Blanket Cleaning

Victorian Floor Sealing

We came back the nextday and after testing the floor with a damp meter to ensure it was dry we began to seal it using five coats of Tile Doctor Seal and Go. Seal and Go is a sealer for Victorian floor tiles as it provides stain resistance as well as a low sheen finish.

Victorian Tiled Floor After Victorian Tiled Floor After

The customer was very happy with the results and as you can see from the photographs we have managed to completely transform the floor.


Source: Victorian Tiles Restored in Cheshire
