Restoring a Victorian Floor hidden under ceramic tiles

Never give up is how I would describe this job!!! I initially surveyed the floor in this Cardiff kitchen in November 2014 and finally completed it and the end of February 2015 working on it off and on as I searched for right tiles to match the existing.

On my survey the Victorian tiled floor which the customer was hoping to restore was covered over by ceramic tiles which the customer agreed to remove before my next visit so I could carry out a cleaning sample. Additionally there was an area of flooring which needed to blend in with kitchen as the pantry wall that previously separated it had been knocked down.

The ceramic tiles were removed and I came round to carry out a cleaning sample in what I thought was one of the more heavily soiled areas; I used Tile Doctor Remove & Go combined with another Tile Doctor product called NanoTech HBU which stands for Heavy Build-up Remover. The results were successful and it was decided to go ahead with the restoration.

Full Victorian Floor Restoration Cardiff Exposing the tiles Full Victorian Floor Restoration Cardiff Exposing the tiles

During my visit I tested for moisture and in general the readings were good with the highest reading of 12 in different parts of the floor.

Fully Restoring a Victorian Tiled Floor

To restore the tiles I set about cleaning adhesive and grime off using a combination of Tile Doctor Nanotech HBU and Pro Clean which was left to dwell and soak in for two hours before scrubbing with a rotary machine fitted with a black scrubbing pad. I tried this for a while and found it was not removing the dirt as expected and on inspection I discovered that the inner body of the ceramic tile was still stuck to the floor. It seems the when the customer removed the ceramic tiles they had only managed to remove the top layer of the tile and had left the lower part stuck to the floor. This Job was now becoming a nightmare as the solution would be to chip and scrape away tiny pieces of the remaining tile away so I could reach and clean the original Victorian floor.

Full Victorian Floor Restoration Cardiff Scraping Off Adhesive Full Victorian Floor Restoration Cardiff Scraping Off Adhesive

I had suggested to the customer that it might be cheaper to replace the whole floor but he was adamant that we should continue with our original plan and try to do the best job possible so never giving up I was happy to oblige.

In between cleaning the floor I prepared the base adjacent to the original floor with levelling compound. Also with the cleaning in progress I was getting a better look at the Victorian tiles which were now starting to appear and I could see how badly damaged which would have to be replaced.

Full Victorian Floor Restoration Cardiff Levelling Compound Full Victorian Floor Restoration Cardiff laying replacement tiles

The hallway floor had to be cut at the kitchen doorway as it protruded into the kitchen which when the door was closed looked odd so the customer was happy with my suggestion. I made different suggestions for the new floor layout, and colours which we felt complimented each floor pattern , the new tiles were purchased from original style and the local reclamation yard but I did have to cut the back off a few because of different thickness.

Full Victorian Floor Restoration Cardiff Trimming reclaimed tiles Full Victorian Floor Restoration Cardiff Laying new tiles

I finished fixing the replacement tiles and laying the new tiles in a pattern that we had agreed and in a style that best matched the original floor.

Full Victorian Floor Restoration Ready for sealing

Sealing a Victorian Floor Sealing

After all the work undertaken including the tilling of the area attached to the original I gave the whole floor a final and thorough steam clean which I did on a the Friday leaving it to thoroughly dry out over the weekend so I could move onto sealing early the following week.

Unfortunately when I arrived on Monday I discovered patches of efflorescence had appeared on certain tiles and I was still unable to finish the job. To resolve this the tiles needed to be given an wash down with Tile Doctor Grout Clean-up diluted 50/50 with water; this did the trick so I gave the floor another rinse with water and left to dry overnight.

When I returned the next day I checked for moisture which was a borderline reading of 15-16 so using a heat gun applied some warmth to the whole floor making sure to let it cool down before sealing with a coat of Tile Doctor Colour Grow which is an impregnating sealer that occupies the pores in the tile to prevent dirt from becoming ingrained there. Next I applied three coats of Tile Doctor Seal and Go which added a nice sheen to the floor and really brought out the vibrant reds in the tile. The following day I returned to do some tiling on wall above the cooker so applied a further three coats of Seal and Go to the floor to ensure it was fully sealed.

Full Victorian Floor Restoration Cardiff Finished Full Victorian Floor Restoration Cardiff Finished

If you have read this story through to the end you will appreciate that this was a mammoth job however it was satisfying to do and the final result looks fantastic, needless to say both myself and the customer were very happy with the end result.


Source: Tile, Stone and Grout Maintenance and Restoration in South Wales

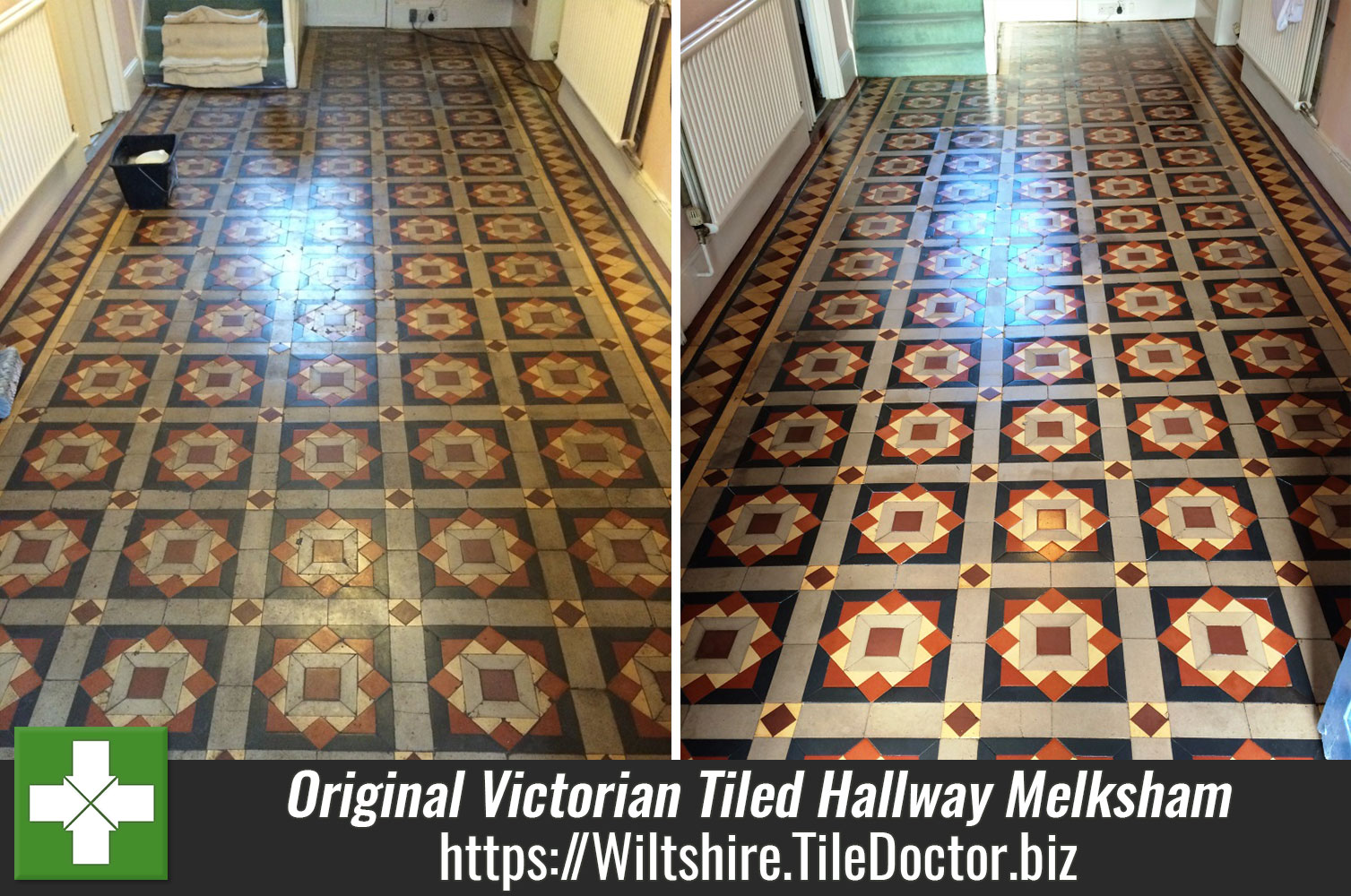

Deep Cleaning Old Victorian Tiles

The owner of this pre 1900s period house in the town of Melksham contacted us to clean & seal their Victorian tiled hallway which had been laid in a geometric pattern and was the original floor from when the house was built. Given its age it was in excellent conditions and a real testament to Victorian engineering.

Original Victorian Tiles Melksham Before Cleaning

Cleaning Victorian Tiles

Firstly we mixed a strong solution of Tile Doctor Pro-Clean and Nano-Tech HBU remover; HBU stands for Heavy Build-Up and is a great product for getting deep stains out of tiled floors. The tiles were covered with the solution and left for twenty minutes so it could soak into the pores. We then attached a black pad to a rotary machine and scrubbed the area thoroughly. Any paint or adhesives was then removed using a scraper and once we were satisfied we then removed the slurry using a wet vacuum and rinsed several times with cold clean water and a deck brush to ensure we had removed all traces of cleaning product before sealing. Stubborn areas were re-treated and the process took most of the day so we then left the floor to dry overnight.

Sealing Victorian Tiles

Upon our return we tested the floor was dry with a damp meter, testing in a number of locations. The readings were fine so we proceeded to seal the floor using six coats of Tile Doctor Seal and Go which will protect the floor from further dirt build-up and staining, it also adds a nice subtle sheen to the tiles.

Original Victorian Tiles Melksham After Cleaning and Sealing

All went well with no major problems and as you can see the tiles now look fantastic.


Source: Tile, Stone and Grout Problems Resolved in Wiltshire

Renovating a Victorian Tiled Hallway

Details below of a customer in Telford who bought a house with a Victorian Tiled Hallway a couple of years prior and has been refurbishing it in sections. When I went there to do the quotation the floor I could see it was in a desperate state and in need of a deep clean and replacement of several broken and cracked tiles, there were several loose ones too.

Victorian tiled Hallway before restoration in Telford Victorian tiled Hallway before restoration in Telford

Cleaning and Repairing a Victorian Tiled Floor

The floor was cleaned using a medium dilution of Tile Doctor Pro-Clean which was left to soak into the tiles for around 15 minutes before being worked into the tile and grout using a rotary machine fitted with a black scrubbing pad and a stiff grout brush. Pro-Clean is a strong alkaline cleaning product that is safe to use on Stone, Tile and Grout. The floor was given a thorough rinse with clean water and a wet vacuum was used to remove the water from the floor, stubborn areas were then spot cleaned using the same process and the floor was then left to dry off overnight.

Victorian tiled Hallway after repair and cleaning in Telford Victorian tiled Hallway after repair and cleaning in Telford

The next day I returned to do the repair work, originally there were seven tiles to replace, but I ended up replacing sixteen tiles and fixing twenty five, fortunately Victorian tiles are still popular and you can still source replacements.

Victorian tiled Hallway after repair and cleaning in Telford Victorian tiled Hallway after repair and cleaning in Telford

Sealing a Quarry Floor Sealing

To ensure the repaired areas had sufficient tile for the adhesive and grout to set I left the floor for four days before returning to apply a sealer checking the moisture level first to ensure it was dry enough to take the sealer. To seal the tiles which will help protect them from staining I applied five coats of Tile Doctor Seal and Go which works really well on Victorian tiles and adds a nice subtle shine to the floor also being water based you don’t get that smell that a solvent based sealer has.

Victorian tiled Hallway after restoration in Telford Victorian tiled Hallway after restoration in Telford



Source: Restoring Victorian tiles in Shropshire

Effectively Sealing Victorian Floor Tiles

Apologies for the first photograph, I realise now it’s a little out of focus but hopefully you can see that the Victorian Tiled Floor pictured (at a residence in the market town of Farringdon, Oxfordshire) was not looking its best and this was mainly due to the fact that the house had recently undergone some extensive building work and had become very dirty in the process.

Victorian Tiles Before Refurbishment in Farringdon

Refurbishing Victorian Tiles

The first thing I did was protect the skirting board and doors from splashes and then to clean the floor I applied a strong dilution of Tile Doctor Pro Clean and this was left to dwell on the floor for a good twenty minutes. It was then worked into the tile using a deck brush and then more Pro-Clean was applied so the floor didn’t dry. I then scrubbed the floor with a rotary floor machine fitted with a scrubbing pad. After I finished the soiled cleaning solution was extracted using a wet vacuum and the whole floor was then rinsed with clean water to remove any trace of cleaning product. The tiles were then inspected and the process re-applied to areas that needed it; I then left the floor for two days so it could dry thoroughly.

Sealing Victorian Quarry Tiles

When I returned the floor was dry so I sealed it using a single coat of Tile Doctor Colour Grow followed by four coats of Tile Doctor Seal & Go. This is a great combination as the Colour Grow impregnates the tile improving the colours and protecting it from within whilst Seal and Go adds a further layer of protection and also added a nice subtle shine that the customer wanted.

Victorian Tiles After Refurbishment in Farringdon



Source: Victorian Tile, Grout and Stone cleaning in Oxfordshire

Deep Cleaning Moroccan Encaustic Cement Tiled toilet Floor

Similar in many ways to Victorian tiles, these are Moroccan Encaustic Cement tiles which come in a huge range of patterns and are ideal for indoor and external use although they should be sealed to protect against water penetration and dirt as well as making cleaning easier. Very popular in hot countries, they certainly add a nice flair which they have done to this ground floor WC at residence in Barrhead which is a town south west of Glasgow in East Renfrewshire.

Moroccan Encaustic Cement Tiles Barrhead Before Cleaning

Cleaning a Victorian Floor

The tiles were looking rather dull and in need of a deep clean and re-seal so the first job was to clean the floor and remove and remaining sealer by applying a strong solution of Tile Doctor Pro-Clean worked in using a black scrubbing pad fitted to a rotary bonnet machine, with all the excess extracted using a wet vacuum. This process was repeated three times until I was satisfied any remaining sealer had been removed and the tile and grout was now as clean as it could be. The floor was then given a rinse with water and cleaned again with Tile Doctor Neutral Tile Cleaner to remove any trace of Pro-Clean; again the fluids were extracted using a wet vacuum.

Sealing a Victorian Floor Sealing

The floor was left to dry overnight and we came back the next day to seal it using six coats of Tile Doctor Seal and Go which works well on these types of tiles as it adds a nice subtle sheen as well as adding the necessary stain protection.

Moroccan Encaustic Cement Tiles Barrhead After Cleaning



Source: Tile, Stone and Grout Cleaning in Glasgow

Deep Cleaning Victorian Floor Tiles

We had a great result on this Victorian tiled floor at a house in Musselburgh which is five miles east of Edinburgh and apparently one of the oldest towns in Scotland. If you take a close look at the photograph below you can see how dirty the tiles were before we got started.

Victorian Tiles Before Cleaning in Musselburgh

Cleaning Victorian Tile and Grout

We were quite lucky with the floor in that it was in good physical shape and really just need a deep clean and re-seal. So the first step was to strip of any old remaining sealer or other coatings from the tiles using a strong solution of Tile Doctor Pro-Clean which is safe to use on these old tiles. The solution was mopped onto the tile and grout and then scrubbed in using a rotary bonnet machines fitted with a black scrubbing pad. The soiled cleaning solution was then rinsed off using water and then the whole process repeated; three times in fact before being satisfied that the floor was clean. The floor was given a final rinse using Neutral Tile cleaner and then water extracted using a wet vacuum before being left to dry overnight.

Sealing Victorian Tiles

We came back the next day and checked a few areas to make sure the floor was dry before sealing. The tiles were dry so the sealing process was started using Tile Doctor Seal and Go which is an ideal sealer for Victorian Tiles as it affords good stain protection whilst adding a nice subtle sheen to the floor, five coats were required before the tiles had become fully sealed.

Victorian Tiles After Cleaning in Musselburgh

I think you will agree the tiles look transformed and the sealer should keep them looking that way for some time to come.


Source: Tile, Stone and Grout Cleaning in Edinburgh

Removing Bitumen Adhesive from Victorian Tiles

We were contacted by a letting agent who managed a large town house in Goring by Sea that had been turned into flats. The area they wanted dealing with was the entrance hall where the original Victorian tiled floor had been covered over with linoleum tiles backed with a bitumen based adhesive and after removing the tiles the floor was now in a terrible state. I was confident that they could be restored however in extreme cases like this there can be no guarantee of the end result so I set their expectations accordingly.

Victorian Tiles Goring by Sea Before Renovation Victorian Tiles Goring by Sea Before Renovation

Restoring Victorian Floor Tiles

I started the job by softening the old adhesive with an application of Tile Doctor Remove and Go which was left to soak into the tile before using a paint stripping blade to carefully lift it off. This process had to be done over the entire area before I could start on the cleaning and once finished the floor was given a good rinse.

The tiles were now mostly free of the adhesive but were very grubby so I started over but this by time by applying a strong dilution of Tile Doctor Pro-Clean which is a powerful tile cleaning product designed for use on stone, tile and grout. The solution was left to soak into the tile before being worked into the remaining dirt and grime using a buffing machine fitted with a scrubbing pad. One done the floor was thoroughly rinsed and any areas that needed it were spot treated.

Sealing a Victorian Floor Tiles

The floor was left to dry out for a few days after which we came back to seal it with four coats of Tile Doctor Pro-Seal which is a penetrating sealer which gave the desired natural look finish and will provide long lasting stain protection by soaking into the pores of the tile and preventing dirt from becoming ingrained there. You have to wait for each coat to dry before moving on to the next so it did take a while.

Victorian-Tiles-Goring-by-Sea-After-Renovation-3 Victorian Tiles Goring by Sea After Renovation

This was a tough job but certainly well worth the effort both the letting agents and residents all said how great the floor now looked.


Source: Tile, Stone and Grout Cleaning Service in West-Sussex

Deep Cleaning Victorian Tiles in Leicestershire

This Victorian Tiled Floor was in the hallway of a house in Melton Mowbray which is famous for its pork pies and historic buildings, although structurally sound it has been some time since it had been given a deep clean and re-seal and was now looking rather dull and lifeless.

Victorian Tiled Floor Melton Mowbray Before Cleaning

Cleaning a Victorian Tiled Hallway Floor

To remove the old sealer and give the floor a thorough clean I applied a dilution of Tile Doctor Remove and Go and left it for about twenty minutes to soak in to the tiles and get to work on breaking down the sealer. This was followed by scrubbing the solution into the tiles using a rotary machine fitted with a black scrubbing pad. I also took the opportunity to freshen the grout by scrubbing the Remove and Go along the grout lines with a stiff brush. The resultant soiled cleaning solution was then rinsed away with fresh water which was then removed using a wet vacuum.

Some areas needed further treatment so the whole process was repeated until I was happy with the condition of the floor, at which point I give it another rinse to ensure there would be no trace of cleaning product on the tiles that could react with the sealer. I then removed as much water from the floor as best as I could with the wet vacuum and then left it to dry off overnight.

Sealing Victorian Hallway Tiles

I came back the next day to check the tiles had dried; it had so I started the application of the sealer. For Victorian Tiles I usually recommend Tile Doctor Seal and Go for a shiny finish or Colour Grow for a more subtle effect. The customer chose Colour Grow which is an impregnating sealer that soaks into the pores in the tile preventing dirt from becoming ingrained there and also enhances the natural colours in the tile.

Victorian Tiled Floor Melton Mowbray After Cleaning

The tiles now look much improved, if not new.


Source: Tile, Stone and Grout Restoration Service in Leicestershire

Restoring 200 year old Victorian tiles

Details below of a Victorian Tiled floor I renovated in Penrith earlier this year. The floor had previously been hidden under laminate flooring and the mat well had been concreted over and other tiles were missing and replaced with concrete infill.

Victorian Tile Renovation Penrith Before

Restoring Victorian Floor Tiles

I carried out a damp test and started by removing the concrete infill and levelling the mat well with a self-levelling compound. Fortunately I had been able to source reproduction tiles that were a pretty good match to the originals which is amazing bearing in mind that the floor was originally laid in 1831 (pre Victorian in fact).

Before replacing the missing tiles I cleaned the existing floor with a diluted mixture of Tile Doctor Remove and Go and NanoTech UltraClean; Remove and Go is a coatings remover so as well as cleaning the floor it also removed the traces of adhesive that was used to stick down the line. I washed down the floor and found there were still some stubborn marks which I tackled with neat Remove and Go and a steam cleaner. Once I was happy with the floor I gave it another rinse and then set about fixing the replacement tiles.

Victorian Tile Renovation Penrith After

Sealing Victorian Floor Tiles

I needed the floor bone dry before sealing so I allowed it to dry out for a couple of days before returning. I sealed the tiles with Tile Doctor Seal and Go which adds a nice subtle shine however I did find the Victorian tiles to be extremely absorbent and so needed seven coats of sealant in total which took much of the day. The sealer did well to bring out the deep colours in the tile as well as brought out the colour in the tiles as well as providing the lovely satin finish. The customers were extremely satisfied with the final result

Victorian Tile Renovation Penrith After



Source: Tile, Stone and Grout Restoration Service in North-Cumbria

Putting the Shine Back On Old Victorian Tiles

I’m beginning to wonder if Tile Doctor has started a trend that has got people looking under their hallway carpets looking for period floors. Indeed this customer in Whitchurch has done exactly that and discovered a beautiful Victorian tiled floor which was with the exception of adhesive residue and dirt was in reasonable condition. They had tried to restore it themselves but could not achieve the desired results so being their local Tile Doctor we got the call.

Victorian tiled hallway Whitchurch before cleaning Victorian tiled hallway Whitchurch before cleaning

Removing Glue and Dirt from a Victorian Tiled Floor

The floor was dirty which I would normally take care of with Tile Doctor Pro-Clean however glue requires something stronger so a strong dilution of Tile Doctor Remove and Go was applied, left to soak in and then scrubbed into the tiles using a rotary machine fitted with a black scrubbing pad. Remove and Go does pretty much what its name suggests and is a great product for safely removing coatings from tile. The floor was given a thorough rinse with clean water and a wet vacuum was used to remove the water from the floor and get it dry so it could be sealed. Some stubborn areas were still evident so they were spot treated using more Remove and Go.

Victorian tiled hallway Whitchurch after

Sealing a Quarry Floor Sealing

The floor needs to be thoroughly dry before it can be sealed and this can be a problem with old houses which may have damp issues. I therefore left the floor to dry for 5 days before coming back to seal it and when I returned checked the floor using a damp meter first. The readings were fine however there were a couple of areas that needed further treatment so those were spot treated and then dried until I was satisfied the floor was as good as it could be. I then processed to seal the floor using five coats of Tile Doctor Seal and Go which adds a nice subtle sheen to the tiles as well as providing stain protection going forward.

I think you will agree from the photographs the floor looks great, certainly the customer was really pleased with the result.

Victorian tiled hallway Whitchurch after sealing



Source: Tile, Stone and Grout Restoration Service in Shropshire

Victorian Floor Repair and Renovation

A customer in Port Talbot discovered an original but damaged Victorian Tiled Floor, circa 1890, hidden under laminate flooring in their hallway and were keen to restore it back to its original condition. They trawled the Internet and discovered Tile Doctor, made contact and a visit was arranged to conduct a survey.

The Victorian floor tiles were in a poor condition and to make matters worse a central heating pipe had been laid through the width of the hallway floor destroying the Victorian tiles. I assured the owners something could be done and we made a booking for me to return and do the work; in the meantime I spent a considerable amount of time sourcing tiles with the right measurements to replicate the original. Fortunately I managed to find a close match with a tile supplier called Original Style.

Victorian Tiled Floor Renovation Port Talbot Before Victorian Tiled Floor Renovation Port Talbot Before

Restoring Victorian Floor Tiles

My first task was as always to check for moisture then to scrape as much adhesive and paint off the tiles as possible; then resorting to a chisel and small jackhammer tool around all the edges of the area to be replaced to remove any more badly damaged tiles.

Victorian Tiled Floor Renovation Port Talbot During Victorian Tiled Floor Renovation Port Talbot During

I could see from the start I was going to need all the assistance I could get to clean this floor and lifts the stains out so to deep clean the tiles I applied Tile Doctor Remove and Go mixed 50/50 with NanoTech UltraClean which adds fine abrasive particles to an already powerful coatings remover. I brushed the solution over the whole floor and then went over it with a rotary machine fitted with a black scrubbing pad. I then left it to soak in for at least an hour before going over it again with the machine. Next the floor was rinsed with water to remove the worst of the dirt and to enable further attention to be focused on the more stubborn stains. Further cleaning was required so I covered the tiles in Tile Doctor Pro Clean which is a strong alkaline cleaning product and then rinsed the floor again scrapping off any old paint and stubborn glue residue in the process.

The floor was looking much improved but there were still areas with light cement smears and deeply ingrained dirt so this time I applied Tile Doctor Grout Clean-up which is an acid based product so you can’t leave it on too long but it’s the only effective way to treat mineral type deposits. I wanted to be sure all this product was removed so afterwards the floor was rinsed three times using a wet vacuum to remove the water. Once I was satisfied the floor was clean I applied a levelling compound to the area damaged by the heating pipes for the new base so I could tile it the following day.

Victorian Tiled Floor Renovation Port Talbot Before Victorian Tiled Floor Renovation Port Talbot During

Repairing a Victorian Tiled Floor

On the second day I started by cutting larger tiles into small pieces as the tiles were only certain sizes available from the tile supplier, but the colour match was nearly perfect so I made do. Next I started to tile the area using a fast setting adhesive so I could grout the tiles the same day. Once everything had set I gave the rest of the floor a final steam clean to make sure there was no trace of chemical that could upset a sealer.

Victorian Tiled Floor Renovation Port Talbot Before Victorian Tiled Floor Renovation Port Talbot During

Sealing a Victorian Floor Sealing

I left the floor to dry out over the weekend and then came back on the Monday to seal the tiles with Tile Doctor Seal and Go which is ideal for this type of tile as it adds a nice shine. I applied three coats leaving and interval in-between so it could dry before applying the next coat.

The customer was delighted with the results and that she chose Tile Doctor to do the work, we were not the cheapest quote she had received but you have to admit the floor looks like new so well worth the money.

Victorian Tiled Floor Renovation Port Talbot After Victorian Tiled Floor Renovation Port Talbot After



Source: Tile, Stone and Grout Maintenance Service in South Wales

Restoring Victorian Tiles Hidden under Carpet

After removing the hallway carpet the new householders had discovered a Victorian tiled floor and being keen to restore it as an original feature made contact with Tile Doctor. Restoring original features can add a lot a value to a house so it’s well worth pursuing.

Victorian Tiled Floor Hidden Under Carpet in Splot Victorian Tiled Floor Hidden Under Carpet in Splot

Restoring a Victorian Tiled Floor

The floor actually caught me out because on initial visit I’d made my judgement on a small area by the doorway which had been uncovered. After removing the rest of the floor covering however I could see the floor was in an extremely poor condition especially around the perimeter which had ingrained dirt and cement, old paint and was generally well worn. I would estimate the floor was original from at least 120 years ago

Before starting any cleaning I put the damp meter reader on several tiles to check the damp levels which read border line .15 -.17 in places which I was not very happy with especially as the weather we’ve had recently had been hot and dry in Cardiff for some time. Undeterred I scrapped the whole floor and then chiselled the edges with Hammer and bolster; next I mixed a 50:50 batch of Tile Doctor Remove and Go with NanoTech Ultra-Clean cleaner and applied this to the whole area, agitated it with a black pad fitted to a rotary machine and left it to dwell on the tile for half an hour so it could work on any old sealers that may have been present on the tile.

I then rinsed the floor twice and although the floor was looking better I could really see how bad the condition was so next I applied undiluted Tile Doctor Pro-Clean to the whole floor which is a strong alkaline cleaner. It was left to dwell on the floor for half an hour scrubbing in between, rinsing with clean water as I carried on.

Although improved again I was still not happy with the results especially the borders as there appeared to be dark cement stains deeply ingrained into the tiles which no doubt had been there for eighty years. So next step was to apply Tile Doctor Grout Clean-up which is designed to remove mineral deposits and cement, it’s very effective solution for this type of work and it removed most of the stains but not all.

The floor still needed more work so in my frustration I rinsed the floor and mixed a concoction of Remove and Go, Pro-Clean and Grout Clean-up together with a squirt of the NanoTech Ultra-Clean cleaner and spread it over the whole area leaving it to dwell for around 10 minutes before scrubbing it again. The floor was then rinsed and then for the final clean I steam cleaned the area twice rinsing in-between.

Victorian Tiled Floor Discovered in Splot Before Victorian Tiled Floor Discovered in Splot Before

Sealing a Victorian Floor Sealing

The cleaning was done on a Friday and then left to dry out over the weekend. I returned on Monday and tested for moisture which was slightly high in places so being ever over precautions dried the whole floor with a heat gun until it gave me an absolute dry meter reading.

I left the floor to cool down to ambient temperature and then sealed it with three coats of Tile Doctor Seal and Go. The customer was over the moon and I think you will agree that the tiles have been renovated to a high standard.

Victorian Tiled Floor Discovered in Splot After Victorian Tiled Floor Discovered in Splot Before



Source: Residential and Commercial Tile and Stone Cleaning in South Wales

Cleaning Original Victorian Floor Tiles in a Listed Building

This original Victorian Tiled floor was uncovered at the Grade 2 listed Salford Town Hall in Salford, Manchester. This public building which built around 1827 was the former Salford Town Hall and Magistrates Court; it’s currently being turned in to luxury apartments and this amazing floor is located in the main entrance hall. The floor was only recently re-discovered during the conversion works after being hidden for many years and was in surprisingly good condition. The company remodelling the building are maintaining the historic features so we got the call to go in and clean and seal the floor.

Victorian Tiles at Salford Town hall before

Cleaning Victorian Tiles

Cleaning the floor was fairly straight forward and involved the application of a dilution of Tile Doctor Pro-Clean which was left to dwell on the tile for around ten minutes before being worked into the Tile and Grout using a rotary machine fitted with a black pad. The dirty solution was removed using a wet vacuum and the whole floor rinsed down three times to ensure there was no trace of cleaner left on the floor. It’s a large tiled area so it took the whole day to complete.

Sealing Victorian Tiles

I returned the next day to see that the floor had dried off overnight and so started to seal it using Tile Doctor Seal & Go which is a topical sealer that adds a nice shine to the tiles, five coats of sealer were needed before the tiles were fully sealed. I think you would agree the floor now looks fantastic; certainly the client was happy with the finish.

Victorian Tiles at Salford Town hall after



Source: Commerical Tile and Stone cleaning

Removing Adhesive and Paint from Vistorian Hallway Tiles

The owner of this house located in the village of Holt had discovered a beautiful Victorian Tiled floor hidden underneath their hallway carpet and made contact with us to get it restored and brought back to life.

Victorian Tiled Floor Restoration in Holt Before

Cleaning a Victorian Tiled Floor

We started by making a strong dilution of Tile Doctor Pro-Clean mixed 50/50 with Nanotech Ultraclean which was applied to the floor and left to soak in to eat through the dirt, dust and marks left behind from the carpet and underlay. Once we let the solution dwell for twenty minutes we attached a black scrubbing pad to a rotary machine and worked the cleaning solution into the tile to remove the dirt and any old sealer that may have been present, then once the cleaning solution became was very dirty it was removed using a wet vacuum.

The cleaning process revealed that there were paint splatters all around the wall edges where decorating had previous taken place and there was also evidence of carpet adhesive remaining on the tile. To remove this a solution of Tile Doctor Remove & Go was applied to the stubborn areas and left to dwell for ten minutes before being agitated with a stiff deck brush and a floor scraper. Once the edges were to a satisfactory level we then rinsed the area several times with fresh water to ensure any trace of cleaning product had been removed before sealing again using a wet vacuum to remove the water and also to dry the floor as much as possible before leaving for the evening.

Sealing a Victorian Floor Sealing

Upon our return the next day we did a damp test to make sure the floor was ready to be sealed. The test was positive so we then sealed the Victorian tiles with five coats of Seal & Go which both protects the floor against spills and traffic but also enhances the colours of each tile.

Victorian Tiled Floor Restoration in Holt After



Source: Residential and Commercial Victorian Tile Restoration in Wiltshire

Cleaning up Victorian Tiles after building work

This Black and White Victorian Tiled hallway floor laid in a “Starburst” pattern at a house in Penarth which had been previous restored in 2011 by another Tile Doctor however the house had recently been subject to some renovations and unfortunately the builders did not cover the hallway floor (typical) so the floor was looking rather tired when I came round to take a look. Whilst I was there I took a damp meter reading which showed the floor to be bone dry which given the hot weather was to be expected; a dry floor and hot weather works in our favour as restoring a tiled or stone floor in hot weather is much more efficient as everything dry’s so quickly.

White Victorian Floor Tiles Penarth Before White Victorian Floor Tiles Penarth Before

Cleaning a Victorian Tiled Floor

My first job was to apply masking tape to the Slate step at the front doorway as the customer was very proud of it and I certainly didn’t want to get any Tile Doctor Remove and Go on it which would of stripped of the sealer. I then cut out a few tiles which were to be replaced before cleaning the whole floor with a dilution of Tile Doctor Remove and Go mixed 50/50 with NanoTech UltraClean to make it more effective. The solution was left to dwell for around ten minutes before being scrubbed into the tiles using a rotary machine fitted with a black coarse pad.

This process not only removed any previous sealer but really thoroughly cleaned the tiles as the small abrasive particles in the NanoTech UltraClean gave the floor a light abrasive deep clean. I should mention that during the cleaning stages I rinse the floor at least four times with clean water and then steam clean the whole floor to open up the pores to ensure that there is no cleaning agents present. I then give the floor a final rinse using a wet vacuuming to remove the water and make the floor as dry as possible prior to sealing. Before leaving for the day I carefully fitted the replacement tiles.

White Victorian Floor Tiles Penarth After White Victorian Floor Tiles Penarth After

Sealing a Victorian Floor Sealing

I cleaned the floor on Friday so it was left to dry out over the weekend coming back on Monday to ensure it was dry and then sealing it with multiple coats of Tile Doctor Seal and Go which works very well on Victorian floor tiles as it gives a nice satin sheen as well as providing stain protection.

White Victorian Floor Tiles Penarth After



Source: Residential and Commercial Tile Cleaning Services in South Wales

Matching old and new Victorian tiles

This particular Victorian tiled floor had been installed in the hallway of a house in Stow Park, Gwent around 130 years ago. Despite its age it was in a good condition and the detailed pattern although dirty was still very distinctive, the customer felt however that the floor was spoilt by the total erosion of the stone step at the front door which had suffered from the 130 years of footfall that had occurred across the threshold.

Victorian Tile Issue Resolved in Gwent Before

They asked me for any suggestions to make it more pleasing on the eye so I chose various colours from the main floor area and created a new entrance step leading to the main hallway comprising of 150 mm x 150 mm original style red and black floor tiles and 150 mm x 75 mm original style black round edge tiles.

Victorian Tile Issue Resolved in Gwent After

Cleaning a Victorian Tiled Floor

The difference between the old and new was fairly obvious so once the tiles had been laid and the grout had gone off I returned to give the original Victorian tiles a thorough clean. There were some stubborn stains on the floor so I decided to scrub in a couple of strong products called Tile Doctor Remove and Go followed by Tile doctor Grout Clean-up rinsing in between the stages.

Remove and Go is a sealer and coatings remover that as well as cleaning will remove old coatings such as sealers from the tile, this is important if you wish to re-seal the floor as you can get unexpected results if you add one sealer on top of another. Grout Clean-up removes mineral deposits such as the white salts from effloresce, rust and grout smears. The floor was given a thorough rinse following the cleaning process to ensure no product was left on the floor that could upset a sealer.

Sealing a Victorian Floor Sealing

Aided by the warm weather it wasn’t long before the tiles were dry enough to be sealed and so I applied two coats of Tile Doctor Seal and Go which adds a nice subtle sheen to the floor as well as providing on-going stain protection.

Victorian Tile Issue Resolved in Gwent After Sealing

I think you would have to agree my solution worked out well and the new tiles look part of the original floor.


Source: Residential and Commercial Stone and Tile Restoration in Gwent

Victorian Tile Restoration in Wiltshire

This customer had just brought a house in Chippenham which they were renovating and it had come to their attention that Victorian tiles had been laid under the hallway carpet. Keen to restore them the customer called us in to see if we could enhance the appearance of their floor.

Cleaning Victorian Tiles

We started by covering the floor with a mild solution of Tile Doctor Pro-Clean mixed 50/50 with NanoTech Ultra Clean, this combination creates a powerful cleaning solution for tackling ingrained dirt and staining. The solution was left to dwell on the tile for twenty minutes and then scrubbed into the tile using a black pad attached to a rotary machine. This process was quite effective and the cleaning solution turned colour with the dirt as it came off the tile. Once we were happy we had removed all the dirt the now dirty cleaning solution was removed using a wet vacuum and the floor rinsed several times with cold water to remove any trace of cleaning product.

Victorian Tiled Floor Chippenham During Cleaning

With the floor now clean it became evident that there were paint spots along the edges which we removed by applying Tile Doctor Remove & Go this time leaving it to dwell for five to ten minutes before agitating with a stiff deck brush. Once again we used a wet vacuum to remove any product and rinsed the floor using cold water.

Sealing Victorian Tiles

We left the floor to dry overnight and returned the next day to seal the tiles. Upon our return we first used a damp meter to confirm that the floor was dry enough to seal which it was. We then sealed the floor with five coats of Tile Doctor Seal & Go which will protect the floor from staining and make it easy to clean, Seal and Go also adds a nice shine to the tile enhancing the colours and general appearance of the tiles.

Victorian Tiled Floor Chippenham After Cleaning and Sealing Victorian Tiled Floor Chippenham After Cleaning and Sealing

We definitely achieved the customer’s goal to enhance the look of the floor and before leaving we gave them some cleaning tips to prolong the life of the sealer by recommending the use of a Tile Doctor Neutral Tile Cleaner which won’t eat into the sealer like the mildly acidic tile cleaning products that you buy in the supermarket.


Source: Residential and Commercial Tile Cleaning in Chippenham

Removing Glue From Victorian Floor Tiles

This Victorian Tiled Hallway at a house in Radford near Coventry had been well preserved under a carpet for many years and the owners of the house now wanted it brought back to life. Physically the tiles were in good condition however they did suffer from the usual issues of paint splashes and adhesive stuck to the surface.

Victorian Tiled Floor Refresh Radford Before Victorian Tiled Floor Refresh Radford Before

Cleaning Victorian Tiles

To clean up the tiles and remove the paint and glue I used a dilution of Tile Doctor Remove and Go. The edges of the floor was done first as this was where the most pain splashes were to be found due to the skirting being painted at some point in the past. The usual procedure still applied allowing the product to soak in and soften the paint before being scrubbed off by hand. Once the edges were done I moved onto the main part of the floor using the same process however this time I had the advantage of being able to use a rotary machine fitted with a scrubbing pad. The dirty solution was rinsed away with water and removed with a wet vacuum.

To finish off and remove some signs of efflorescence (white salt stains) the tiles were then scrubbed in a dilution of Tile Doctor Grout Clean-Up. This did the trick but you can’t leave this product on the tiles for too long as its an acid so as soon as it had done its job it was washed off and then the tiles were then given a thorough wash down with clean water.

My work was done for the day so I left a fan running to help speed dry the floor overnight and left for the day.

Sealing Victorian floor tiles

I came back the next day to seal the floor using Tile Doctor Seal and Go sealer which provides stain protection as well giving a nice sheen to the tile, the tiles were quite porous and needed six coats before they were fully sealed.

Victorian Tiled Floor Refresh Radford After



Source: Residential and Commercial Tiled Floor Cleaning in Warwickshire

Victorian Tiled Hallway restored near Coventry

Popular as they are in the UK it wasn’t long before I was called back to refurbish another Victorian Tiled Hallway Floor this time in the town of Allesley near Coventry. This tiles were heavily soiled and had been splashed with paint from decorating, on top of this there was evidence of adhesive from when the floor had been previously covered in carpet and there were a number of damaged tiles that needed replacing.

Victorian Tiled Hallway Coventry Before Cleaning Victorian Tiled Hallway Coventry Before Cleaning

Cleaning Victorian Tiles

To get the tiles clean of paint and dirt I decided to go straight for a dilution of Tile Doctor Remove and Go which was left to soak into the tiles for around thirty minutes before scrubbing it in with a rotary machine fitted with a scrubbing pad. The dirty solution was rinsed away with water and removed with a wet vacuum and stubborn areas and grout re-treated with a scrubbing brush by hand.

I wasn’t entirely happy with the condition of the tiles at this stage so the next step was to scrub in a dilution of Tile Doctor Grout Clean-Up which is an acid based product that removed grout haze, mineral deposits, rust stains and efflorescence. This did the trick but being an acid based product you can’t leave it on the tiles for too long and so was washed off soon after and the tiles washed down with clean water.

I scraped out the grout surrounding the damaged tiles and lifted them out, I had already arranged replacements so once that was done and tidied up it was just a question of putting the replacement in place with tile adhesive and re-grouting using a sympathetic grout colour to match the aged existing grout.

My work was done for the day so I left a couple of fans running to help dry the floor and left for the day.

Victorian Tiled Hallway Coventry Drying

Sealing Victorian floor tiles

I came back the next day to seal the floor using Tile Doctor High Shine sealer which provides stain protection as well as a very shiny finish; five coats were needed to get it fully sealed.

Victorian Tiled Hallway Coventry After Cleaning and Sealing Victorian Tiled Hallway Coventry After Cleaning and Sealing



Source: Residential and Commercial Stone Floor Restoration in Warwickshire

Restoring Victorian tiles in South London

This post is from a house in Balham where the owner was doing some renovation work and after deciding to change the flooring in the hallway they discovered an original Victorian tiled floor. They planned to restore the floor unfortunately however their builders did not listen and didn’t bother to put down any protection when decorating leaving it in a worse condition than when they found it.

Victorian Tiled Floor Balham Before Cleaning Victorian Tiled Floor Balham Before Cleaning

Cleaning the Victorian Tiled Floor

To initially clean the floor I put down a 50/50 mixture of Tile Doctor Pro-Clean and Nanotech Ultraclean diluted with four parts water; this creates a powerful alkaline cleaner that is safe to use on tiles and contains tiny abrasive particles to cut through the grime. This solution was left to dwell on the tile for twenty minutes before being agitated using a rotary machine fitted with a black scrubbing pad. This action did well to deep clean the tiles and remove dirt but there was still plenty of other problems to deal with including paint from the decorating and glue from the carpet.

To remove the glue and paint I treated the surface with Tile Doctor Remove and Go which as its name suggest is designed to remove coatings from the surface of tiles without damaging them. Working in sections the product was left to dwell for forty minutes on the surface of the tile before being worked in by hand into the glue and paint. Once it had all been removed I gave the whole floor a scrub with Grout Clean-Up to remove grout from the surface of the tile and this brightened up the colours. Last step was to give the floor a thorough rinse down using clean water, this is quite important and you need to ensure any trace of product has been removed before sealing. The water was removed using a wet vacuum which literally sucks the water off the floor and reduces drying times, the floor was still fairly damp at this stage so we called it a day leaving an air blower in place to help the floor to dry overnight.

Sealing Victorian Tiles

When I came back the next day I decided to seal the tiles using Tile Doctor Colour Grow which is an impregnating sealer that penetrates into the pores of the tile blocking any dirt from getting in and making the tiles easier to clean.

Victorian Tiled Floor Balham After Cleaning Victorian Tiled Floor Balham After Cleaning

Two coats were sufficient and Colour Grow also brings out the colour in the tile improving its look, certainly my customer thought so as all they could say was:

“AMAZING I didn’t think it was possible to get like this.”

Victorian Tiled Floor Balham Before and After

Source: Residential and Commercial Tile Restoration in London and Surrey
