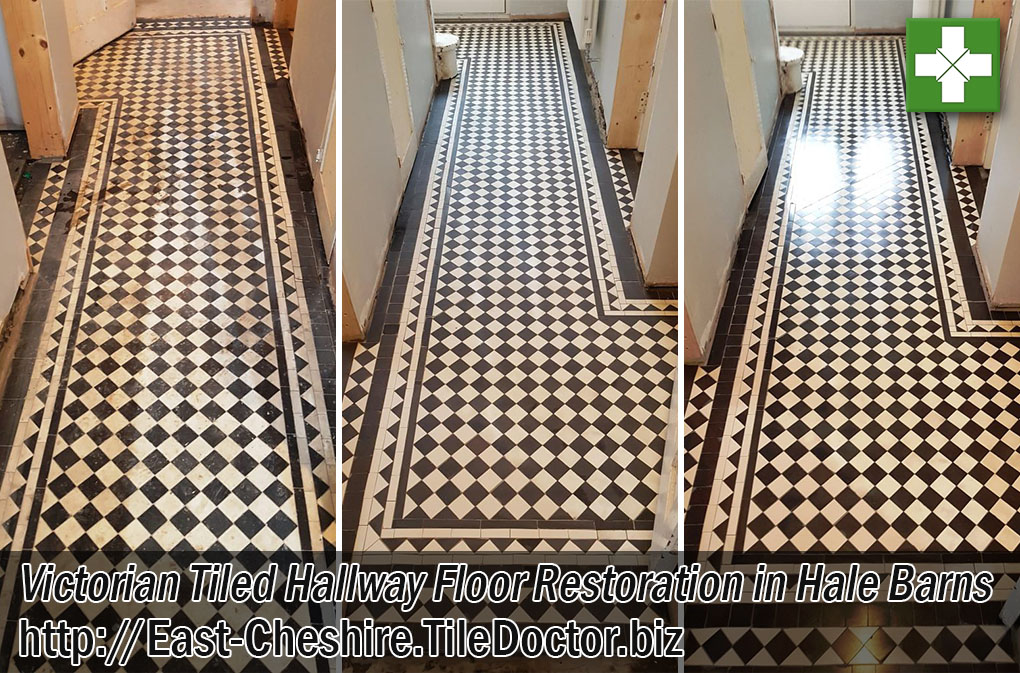

Relaying and Renovating a Victorian Tiled Hallway in Hale Barns

We were contacted by an architect who was working on the redevelopment of a late Victorian property in Hale Barns, their client wanted to restore the property to its former glory and several internal changes meant reconfiguring the doorways on the ground floor. This in turn would impact the elegant Black and White Victorian tiled hallway floor and the request was for us to lift half the tiled floor and then replace it once the internal changes were complete.

Black White Victorian Hallway Floor Before Cleaning Hale Barns Black White Victorian Hallway Floor Before Restoration Hale Barns

Certainly, an interesting request and one we were happy to quote for. Hale Barns is an effluent part of Cheshire with a mixture of late Victorian and ultra-modern housing popular with footballers, so It’s refreshing to see a period property like this sympathetically restored instead of being demolished.

Lifting and Rebuilding a Victorian Tiled Hallway Floor

The first part of the works involved removing the section of flooring that would be disrupted by the internal changes. Normally we would carefully cut out one tile so we can get a purchase on the remainder from underneath; however the floor had some loose tiles so it simply a question of lifting these then putting a flat plate under the rest and popping them up. I make it sound simple but doing it without damaging a tile takes patience.

Black White Victorian Hallway Floor During Tile Removal Hale Barns Black White Victorian Hallway Floor During Removal Hale Barns

The lifted tiles were stored in buckets containing a 4:1 dilution of Tile Doctor Pro-Clean and water. The tiles were left so soak for a couple of days to soften the adhesives, grout and dirt before being cleaned off and left to dry out.

Once the building work was completed, we were called back into rebuilt the Victorian floor taking into account the new door thresholds. The first job was to level the floor with fast drying self-levelling compound to provide a new sub-base for the tiles. This was left to dry overnight and the next day we started laying the floor back down with fast setting tile adhesive. Once the floor was laid, we left for the day, so it could set overnight.

Black White Victorian Hallway Floor During Restoration Hale Barns Black White Victorian Hallway Floor During Restoration Hale Barns

Lifting and Rebuilding a Victorian Tiled Hallway Floor

Next day we checked the tiles were set before starting to clean with a set of abrasive burnishing pads which attach to a slow speed weighted rotary floor machine. We started with a very coarse 100-grit pad and use water to help lubricate the process, the resulting soil is then rinsed off and removed with a wet vacuum. Using exactly the same process we continue to further refine the tiles by working our way through ever finer grades of pads until we get to 1500-grit. The floor was then washed with Tile Doctor Acid Gel and this is left to soak into the tile before being washed off with water. Giving the floor an acid wash in this fashion helps clean the tile of old mineral deposits and also neutralises any alkaline salts in the floor which could cause problems later on, this is a common issue with old floors more commonly known as efflorescence. The floor was dried using the wet vacuum to remove as much moisture as possible before being left to dry off overnight.

Sealing a Victorian Tiled Floor

The next morning, I finished off the restoration of the floor with the application of a very fine 3000-grit burnishing pad which gave the floor a light sheen. This final pad is applied dry with only a little water sprayed onto the tile using a method we call a ‘Spray Burnish’.

The floor was then checked for moisture with a damp meter to make sure it was dry before sealing. All was well and two coats of Tile Doctor Colour Grow sealer were applied to protect the floor going forward. Colour Grow is a fully breathable impregnating sealer that will enhance the colour of the black tiles and being breathable will cope well with any moisture rising through the floor. Once the sealer had dried fully the floor was buffed with the 3000-grit pad leaving a sheen as requested by the client.

Black White Victorian Hallway Floor After Cleaning Hale Barns Black White Victorian Hallway Floor After Sealing Hale Barns

The result was quite a transformation that was well received by the architect and their client.



Source: Victorian Tile Cleaning and Restoration Service in Hale Barns, East-Cheshire

Putting new life into a Victorian Hallway floor in Cheshire

The village of Grappenhall has a long history that goes all the way back to the bronze age and as a result has all periods of architecture including quite a lot of houses with Victorian tiled hallways . This particular floor at a house in the village had been well looked after well by the owner but had now lost its vibrancy, was looking dull and now needed a deep clean and reseal.

Victorian tiles are porous and so need to be sealed to protect them from dirt becoming ingrained in the floor. However, hallway floors get a lot of foot traffic which over time wears down the sealer until it becomes so thin and patchy it’s no longer effective. As a result, you need to regularly top up the sealer or every three to four years it will need to be stripped off and reapplied.

Victorian Tiled Hallway Grapenhall Before Cleaning Victorian Tiled Hallway Grapenhall Before Cleaning

Deep Cleaning the Victorian Tiled Floor

I used clear plastic to protect the wood skirting boards from splashing and then gave the tiles a good scrub with a mixture of Tile Doctor Pro-Clean and Remove and Go to deep clean and strip off any remaining sealers. The cleaning solution was left to soak in for ten minutes before scrubbing it in with a black pad fitted to a heavy buffing machine.

Once the whole area had been scrubbed I rinsed off with water which was then extracted using a wet vacuum. With the floor now clear I was able to inspect it to ensure all the previous sealer and ingrained dirt had been removed. Any areas with stubborn stains were spot treated by reapplying the cleaning concoction I used earlier before leaving the floor to dry off fully overnight.

Sealing the Victorian Tiled Floor

When I returned the next morning my first job was to test the tiles for damp using a damp meter. This is important as damp tiles won’t take the sealer as well as dry tiles, however this time everything was fine.

I then proceeded to seal the Victorian tiles with a single coat of Tile Doctor Colour Grow to enhance the natural colours in the tile before applying a further seven coats of Tile Doctor Seal and Go which leaves a sheen finish and is ideal for Victorian tiles.

Victorian Tiled Hallway Grapenhall After Cleaning Victorian Tiled Hallway Grapenhall After Cleaning

The hallway now looks fantastic and vibrant and then new sealer will protect them from ingrained dirt making them easier to clean and keep them looking good for some time to come.


Source: Victorian Tile Cleaning and Restoration Service in Cheshire

Victorian Hallway Tile Clean and Repair in Prestbury

This fantastic chequered black and white Victorian Tiled Hallway was located at a house in the village of Prestbury north of Macclesfield in Cheshire. According to Wikipedia Presbury is part of the “Cheshire Golden Triangle” villages which include Wilmslow and Alderley Edge which are the most sought after and expensive places to live outside of London.

It was a lovely building however a new stair case had been fitted which didn’t quite match the foot print of the original staircase leaving a gap in the hallway tiling. The owner of the property wanted matching tiles fitted and also to give the floor and good clean and seal so they would blend in.

Chequered Victorian Floor Prestbury Before Repair and Clean

Cleaning a Victorian Tiled Floor

To clean the floor and strip off any remaining sealer I first created a strong dilution of Tile Doctor Pro-Clean cleaning solution which is a versatile alkaline cleaner that’s designed for use on tile, stone and grout. reliably eradicates dirt on a wide variety of natural stone floors.

The solution was applied liberally across the floor, and left to dwell for about ten minutes to allow time for it to soak into the Victorian tiles. It was then scrubbed into the tiles using a scrubbing pad fitted to a rotary cleaning machine. The resulting cleaning slurry was rinsed off with water and then extracted from the floor using a wet vacuum. I repeated this process until I was confident the tiles were clean and free of old sealer.

The next step was to treat the floor to an acid wash using Acid Gel, this is especially important on old floors where there is no damp proof course to prevent damp rising through the tile leaving salt deposits on the surface. This problem is known as efflorescence and is neutralised by the acid. The gel was then removed and the floor given another rinse using the wet vacuum to get the floor as dry as possible.

The last task of the day was to fix replacement tiles in the gap left by the original staircase. Fortunately, Tile Doctor keep a range of replacement tiles so I was able to source some that matched without too much problem. After grouting the hallway was left to dry off fully overnight so it could be ready for sealing the next day.

Chequered Victorian Floor Prestbury After Repair and Clean

Sealing a Victorian Tiled Floor

The next morning, I returned to the property and ran some damp tests. This is incredibly important to do before sealing any tiled floor because any excess moisture can cloud the sealer and prevent it from doing its job properly.

Once satisfied that the floor was dry, I applied a single coat of Tile Doctor Colour Grow which is a breathable impregnating sealer that enhances colour and protects from within. I dusted off any excess sealer and then followed up with the application of four coats of Tile Doctor Seal and Go which provides both a robust surface seal and a long-lasting low sheen finish. I waited two hours for the sealer to dry and then the rotary machine fitted with a white buffing pad over the floor to makes sure everything was nice and tight.

Chequered Victorian Floor Prestbury After Repair and Clean Chequered Victorian Floor Prestbury After Repair and Clean



Source: Victorian Tile Cleaning and Restoration in Prestbury, Cheshire

Restoring Badly Stained Victorian Tile

This classic Victorian tiled floor in Kingswood Kitchen; Cheshire was quite dirty and in need of a deep clean. Cleaning this type of floor is bread and butter for a Tile Doctor and so I had every confidence we could clean in and then re-seal it without any complications.

Victorian Floor Kingswood Before Cleaning 006 Victorian Floor Kingswood Before Cleaning 005

Cleaning a Stained Victorian Floor

In order to tack the ingrained dirt and I decided the best course of action would be to cover the Victorian Floor tiles with a 50/50 mix of Tile Doctor Pro-Clean and Nano-Tech UltraClean and leave it to work on the tile allowing the cleaner to break down any remaining previous sealer and in-grained dirt.

Victorian Floor Kingswood During Cleaning 007 Victorian Floor Kingswood During Cleaning 008

After about 30 minutes I steam cleaned the whole area multiple times to lift the ingrained dirt and grime out of the floor and then give the floor a thorough rinse removing the soiled solution using a wet vacuum. The floor was quite damp at this stage and needs to be dry to seal so we left it to dry overnight, we also left behind a dehumidifier to assist with the drying process.

Sealing a Victorian Floor

The next day we came back and tested the floor using a damp meter to make sure it was dry. Once we were satisfied we sealed the tiles using five coats of Tile Doctor Seal and Go which is ideal for Victorian tiles as it leaves an attractive low sheen finish, it’s also a water based sealer so there is no smell.

Victorian Floor Kingswood After Cleaning 012 Victorian Floor Kingswood After Cleaning 013



Source: Victorian Tile Restoration in North Cheshire

Restoring a Victorian Tiled Floor

Details below of a Victorian tiled floor that we cleaned and sealed at a house in Hale, Cheshire, you can see from the photographs below how poor a condition it was in however the tiles were structurally sound so we set about restoring it.

Victorian Tiled Floor Before Victorian Tiled Floor Before

Victorian Floor Deep Cleaning

The tiles were covered with thick layer of old resin, glue, trapped dirt, possibly wax as well, so the best system for this on Victorian Floor Tiles is to cover the Tiles with a 50/50 mix of Tile Doctor Remove and Go and NanoTech Ultra-Clean; the Remove and Go breaks down the wax, glues etc. while the Nano-Clean works deeper in to the tiles and encapsulates the trapped dirt. It does take time for this process to work however so to help the process along we soak the area with these products, cover over with a plastic sheet and then leave it. The plastic sheet this stops the products from drying out and also makes the floor sweat which works like a sauna to open up the pores of the Tiles. We then cover the plastic with Cotton Dust sheets and leave it like that overnight, the customer can still walk on the Floor area while the Treatment is in place.

The next day we lifted the plastic and steamed the whole area to help release the old trapped dirt and grime etc., the floor is then given a good rinse with clean water and we use a wet vacuum to remove the resultant slurry. We couldn’t seal the floor that day as it was still wet so the cotton sheets were put back on and switched on a dehumidifier to help speed up the drying process.

Victorian Tile Blanket Cleaning

Victorian Floor Sealing

We came back the nextday and after testing the floor with a damp meter to ensure it was dry we began to seal it using five coats of Tile Doctor Seal and Go. Seal and Go is a sealer for Victorian floor tiles as it provides stain resistance as well as a low sheen finish.

Victorian Tiled Floor After Victorian Tiled Floor After

The customer was very happy with the results and as you can see from the photographs we have managed to completely transform the floor.


Source: Victorian Tiles Restored in Cheshire
