Deep an Cleaning Edwardian Mosaic Floor in Abington Park, Northamptonshire

My customer recently got in touch and requested a site visit to look at her hallway floor.
The Edwardian property was situated in the Abington Park part of Northampton which is an area is steeped in history, with the nearby Manor House said to have been the home of William Shakespeare’s daughter Elizabeth Bernard. The house has since been turned into a museum.

As you can see from the photos, the floor which was laid when the house was built over 100 years ago using small square brown and beige mosaic tiles in a repeating. Although in good physical condition for its age the floor was looking a little tired and had lost its lustre and vibrant colour. The hallway also had stained wood panelling on one side which was another original feature and the owner of the property was keen to maintain the period feel.

Edwardian Mosaic Tiled Hallway Floor Before Cleaning Abington Park

I discussed with the customer what we could do to restore the floor, explaining the process, timescale and of course the cost. She was happy to go ahead so we scheduled the work in without delay.

Edwardian Mosaic Tiled Hallway Floor Before Cleaning Abington Park

Cleaning an Edwardian Mosaic Tiled Hallway Floor

In order to protect the wall panels and keep the moisture in the floor to a minimum I decided to keep the use of cleaning products to a minimum. This is always a concern with these old floors which have no damp proof membrane as the use of too much water can lead to efflorescence salts appearing later. With this in mid I decided to clean the floor using Tile Doctor burnishing pads as these pads only require a small amount of water and no products, this would also have the benefit of slightly levelling out the surface of the tiles.

My first course of action was to vacuum the floor to ensure there was no loose debris followed by masking up the bottom of the stairs carpet to protect it. I then started the restoration process by using a coarse 100-grit Tile Doctor burnishing pad attached to a 17” industrial rotary machine and a small amount of water to lubricate the process. The 100-grit pad is quite an aggressive pad which removes deeply imbedded stains and as mentioned before a small amount of unevenness. To remove the resultant slurry the floor was rinsed with a small amount of water which was then extracted using a wet pick up machine. This process was then repeated with a 200-grit burnishing pad to smooth out any scratches and polish the tile ready for sealing.

Although it was a relatively small area, 12 square metres this process took the whole day as we work in small sections at a time. Moving the machine slowly with multiple passes over each area.

Sealing an Edwardian Tiled Hallway Floor

I returned the following day and assessed the floor to ensure we were happy with the result from the previous days cleaning. I also took damp meter readings and was pleased to see they were within normal expectations for a floor of this age. Next, I applied Tile Doctor Colour Grow Sealant which is a breathable sealant that will allow any moisture in the sub floor to rise though the tile. This particular sealer is a colour enhancing sealer that protects and improves the natural colours in the tile and leaves a lovely natural finish. The floor now has a much more even finish and will be much easier for the client to maintain in the future.

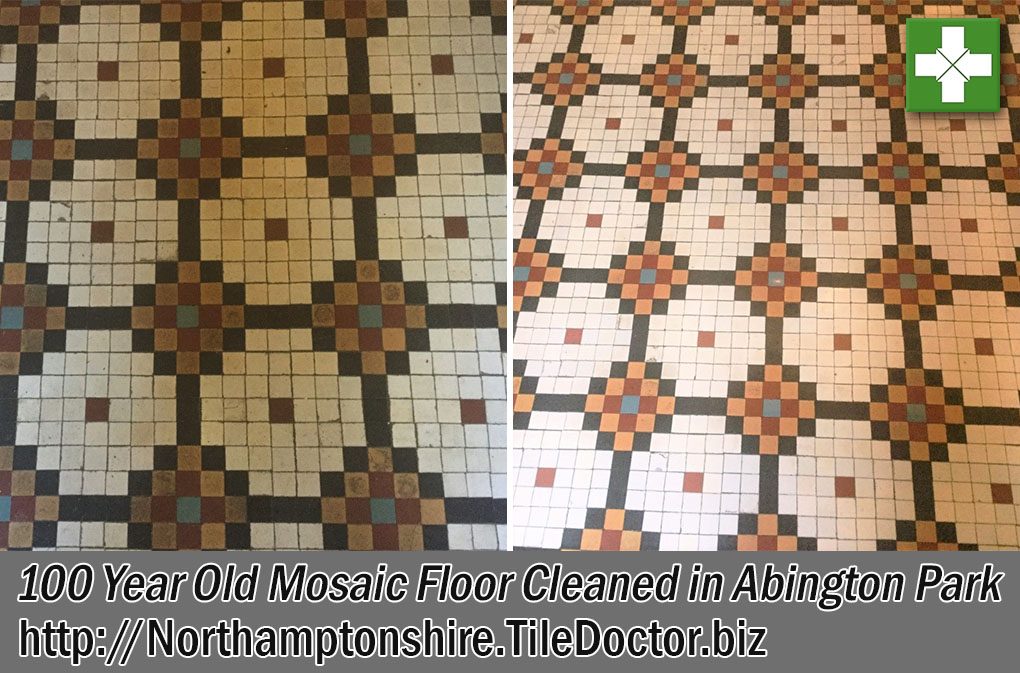

Edwardian Mosaic Tiled Hallway Floor After Cleaning Abington Park

The customer was very happy with the results and left the following feedback on the Tile Doctor feedback system.

“Great communication about the work planned and quotation. A super job in bringing my Edwardian mosaic tiled floor back to life. Would highly recommend this service”
Karen M”

Edwardian Mosaic Tiled Hallway Floor After Cleaning Abington Park



Source: Mosaic Tile Cleaning and Sealing Service in Abington Park, Northamptonshire

External Edwardian Pathway Repaired and Restored in North London

As you can see this Clay Tiled Pathway laid during the Edwardian period at the front of a house in Barnet, North London had suffered over the years and now had many broken and cracked tiles along the path. The concrete foundation had seen some movement in the past leading to a crack forming right across which had either cracked the tile or caused them to become loose.

Edwardian Clay Pathway Barnet Before Cleaning Edwardian Clay Pathway Barnet Before Cleaning

To restore the path to its original condition would require removing all the broken and loose tiles and then relaying with matching replacements and grout giving particular attention to the detailed edging pattern. Fortunately, having done a few of these jobs before I have learned where to find replacements and often keep an eye on salvage yards and ebay.

Edwardian Clay Pathway Barnet Before Cleaning Edwardian Clay Pathway Barnet Before Cleaning

Cleaning and Repairing an Edwardian Clay Tiled Pathway

The first job was to remove ingrained dirt and old coatings by applying a strong dilution of Tile Doctor Remove & Go across the entire length of the pathway. Remove and Go as its name suggests breaks down and strips off the old sealers as well as dislodging ingrained dirt. It was scrubbed in and then rinsed off with water and extracted using a wet vacuum.

Next some of the tiles which had experienced particularly stubborn staining were given an Acid Wash using Tile Doctor Acid Gel which removes old grout smears and mineral salts deposits which is often referred to as efflorescence. Acid Gel neutralises the alkaline salts and once scrubbed in it was removed using the wet vacuum.

Once the dirt and efflorescence had been dealt with, I focused my attention towards the tile repairs starting with the removal of the broken and loose tiles so I could get at the cracked sub-base and repair it. Once the repair had hardened I was able to relay the path using a mixture of exiting and replacement tiles taking care to match the original pattern. Before leaving for the day the tile adhesive had gone off and I was able to grout them in using a matching grout. I had also checked the weather forecast to ensure no rain was forecast that evening.

Sealing an Edwardian Clay Tiled Pathway

The weather held and the following day with a freshly cleaned and repaired path I was able to finish the job by applying two coats of Tile Doctor Colour Grow which really brings out the natural colours in the clay tile. Once the sealer had dried I ran a white buffing pad over the path to give it that final finish before showing it to the owner of the property who I’m happy to report was extremely pleased with the result.

Edwardian Clay Pathway Barnet After Cleaning

I should mention that when choosing a Sealer for an external application it’s important to choose one which is fully breathable and can cope with the wet conditions.


Source: Edwardian Tile Cleaning and Restoration Service in North London

Removing Tar from Edwardian Hallway Tiles in Warwickshire

The owner of this house in Chaplefields near Coventry had bought this property as an investment and was keen to improve its appearance. As part of this work he had lifted the vinyl tiles in the hallway and discovered a lovely Edwardian tiled floor. Unfortunately, whoever had laid the Vinyl tiles had decided to use Tar as an adhesive and this had left a black mess all over the floor.

Edwardian Tiled Floor Covered In Tar Chaplefields Coventry Before Restoration

Realising the potential value an original feature such as this could add to the property he was keen to restore the tiles but not so keen to deal with the Tar, so we were asked to deal with the problem and restore the floor as close to its original condition as possible.

Repairing and Cleaning a Dirty Edwardian Tiled Floor

To get the tiles clean and remove the horrible tar I applied a strong dilution of Tile Doctor Remove and Go, which as its name suggest is great for removing coverings from tiles. I applied the Remove and Go with a mop, left it to soak in for a few minutes and then worked it in using a rotary machine fitted with a black scrubbing pad. The soil was extracted off the floor using a wet and dry vacuum and then the process repeated until I was happy all the tar was gone.

I then gave the tiles an acid wash using Tile Doctor Acid Gel; this serves to break down alkaline mineral deposits such as cement and grout smears, it also counters any efflorescence problems which can be an issue with these old floors where no damp proof membrane has been installed.

Finally, the floor was given a rinse with clean water and a steam clean to remove any trace of cleaning products and to neutralise the tiles in preparation for sealing.

Sealing a Edwardian Tiled Floor

I left the floor to dry off overnight and returned to the property to seal the tiles the next day. To seal the tiles, I used three coats of Tile Doctor Seal and Go which is a water based sealer that leaves a subtle sheen finish and being water based doesn’t leave a smell as it dries. The sealer will provide durable protection going forward preventing dirt from becoming ingrained into the pores of the tile and ensuring it remains easy to clean and keeping its appearance for some time to come.

Edwardian Tiled Floor Covered In Tar Chaplefields Coventry After Restoration

The floor now looks fantastic and gives a great impression when you come into the property which is exactly what the owner wanted.


Source: Edwardian Floor Tile Cleaning and Restoration in Warwickshire

Renovating Old Edwardian Hallway Tiles in Devon

Colyton is a small village in the Coly Valley, which itself is part of Devon’s Area of Outstanding Beauty. As you can imagine, it was very nice to drive through the countryside to reach the village to visit a customer. The customer was keen to restore her Edwardian tiled entranceway and hallway in a classic herringbone pattern, which consists of an arrangement of rectangles.

Parts of the floor had been under carpet for a long time and other areas were covered in at least three layers of thick masonry paint. There was some damage to the floor at thresholds where the carpet grips had been hammered into the floor and a few holes with rawl plugs in scattered the area. This had left the floor looking worse for wear and all in all, there was a lot to be done to restore the tiles back to their original condition – just take a look at the photos below.

Edwardian Hallway Tiles Herringbone Pattern Colyton Before Edwardian Hallway Tiles Herringbone Pattern Colyton Before

Several methods were tried on each area during the initial visit to determine the best way forward including chemicals, diamond pads and heat plus a razor scraper. It was clear a mixture of these methods would be needed to get the best results.

Cleaning an Edwardian Tiled Entranceway and Hallway

On my return, I removed the rawl plugs filled the holes with an epoxy resin in a matching colour. Next I started on giving the tiles a deep and thorough clean to remove not just the copious ingrained dirt, but also the unappealing paint smears.

I did this by applying Tile Doctor Remove and Go, which not only cleans the stone, but also strips away any old sealer. Remove and Go is particularly good for removing most artificial coatings and finishes, adhesives, and paints – and can be used on most unpolished natural stone.

Next, I give the tile and grout an acid rinse with Tile Doctor Grout Clean Up, which is a concentrated phosphoric acid product, to negate any underlying efflorescence and alkaline salt deposits. Efflorescence and salt deposits can be common problems for older, original tiled floors because they often lack a damp proof course.

Having finished cleaning the floor, I gave it a thorough rinse using fresh water to remove any traces of chemicals, before leaving it to dry overnight.

Sealing an Edwardian Tiled Entranceway and Hallway

Returning to the property next day, I ran some quick damp tests to check the floor was ready to be sealed.

To seal the floor, I used a single coat of an impregnating sealer called Colour Grow and followed this up with five coats of Tile Doctor Seal and Go. Both sealers will allow for vapour to rise up through the floor ensuring any damp can rise up through the floor in future which is essential for an old floor like this one which has no damp proof membrane.
The also combine to provide stain resistance surface and a robust, low-sheen finish.

And, with that, the job was done. Two days of work later and the floor is back to looking it best, as you can see in the photos below. Another satisfied client for the Devon Tile Doctor who left the following feedback.

“Very good work,we are very pleased with the result.
Stuart was a very professional hard worker and gave us clear advice on taking care of the floor.“

Edwardian Hallway Tiles Herringbone Pattern Colyton After Edwardian Hallway Tiles Herringbone Pattern Colyton After



Source: Edwardian Floor Tile Cleaning and Renovation Service in Devon

Geometric Edwardian Tiled Floor Restoration in Leicestershire

Our customers typically ask us a lot of questions about their tiled floors with the most common being “Can it be restored?” This reflects the UK trend to restore period features in older properties including original tiled floors dating back several decades and sometimes over a century. These floors are, as you might expect, usually worse for wear but – importantly to know – they can in most circumstances be salvaged and even restored to look even better than when they were first installed.

Here’s a good example of this at a property in Quorn (not to be confused with meat substitute product), a town in Leicestershire situated near to the university town of Loughborough. Over three days we restored a beautiful black and white geometric Edwardian tiled hallway floor back to its former glory. Our customer had discovered the badly damaged and dirty floor after lifting the laminate wood flooring in the hallway, and we were called in to provide repairs and restorative cleaning and sealing.

Black White Edwardian Geometric Floor Before Restoration Quorn

A number of matching tiles would be required for this job so before beginning the work, we advised the customer as to where suitable replacements could be sourced.

Repairing and Cleaning a Damaged Edwardian Tiled Floor

To begin, we carefully removed the cracked concrete fill, before cleaning up the substrate and using a self-levelling compound to restore the surface to the point that new tiles could be installed. The damaged tiles along the edge of the recess were carefully cut out and removed. Using the modern reproduction tiles, we patched the area to complete the repairs to the floor. We also had to cut many tiles to size to achieve the best fit.

Next, we set about cleaning the tiles to restore a pre-soiled appearance to the floor. This was done using Tile Doctor Oxy-Gel, a strong alkaline-based gel cleaner that is used to break down dirt and grime. We chose to use this product over the similar alkaline-based cleaner Tile Doctor Pro-Clean because Oxy-Gel is gel based and therefore contains less moisture and therefore would exacerbate inherent damp issues in the old floor. The cleaner was left to dwell for a short period before being agitated with a scrubbing pad, and the resulting soiled cleaning solution was then soaked up using a wet vacuum.

Black White Edwardian Geometric Floor During Restoration Quorn

The floor was then allowed to dry off overnight, ready for sealing the following day.

Sealing an Edwardian Tiled Floor

Upon returning the next day, we checked for any excess moisture that may have delayed us from sealing the floor. Thankfully the tiles were dry and could be sealed with Tile Doctor Colour Grow, our colour intensifying, solvent-based impregnating sealer which is highly durable and provides an aesthetically pleasing natural matte finish. Three coats were applied to offer maximum protection.

Black White Edwardian Geometric Floor After Restoration Quorn

As you can see from the photographs, the restoration was a fantastic success. We left the ecstatic customer with a Tile Doctor maintenance guide, as well as with a litre of Tile Doctor Neutral Tile Cleaner for regular cleaning. Correctly diluted, this product effectively cleans without effecting the integrity of the sealer.


Source: Victorian Tile Cleaning and Restoration in Leicestershire
