Victorian Hallway Floor Tile Restoration in Camden

This detailed Victorian tiled hallway at a property in Camden was overdue some much-needed repair and maintenance. The owners of the property appreciated that original period features like this add a lot of value to a property and asked me to visit the property to quote for renovating it. The property was in a terrace of similar properties most of which appeared to have retained their Victorian character.

Victorian Hallway Floor Tile Before Restoration Camden

I inspected the floor and found there were a couple of loose, cracked, worn and broken tiles that needed to be replaced. In addition, the floor tiles needed a deep clean and then seal to bring back the wow factor. I was confident we could renovate the floor but at that point unsure if we would be able to find exact match replacements for the damaged tiles. Fortunately, Victorian tiles are still in demand and I knew of several companies I could check with so I was confident they could be found.

Victorian Hallway Floor Tile Before Restoration Camden

We discussed how long the work would take and assuming I could source the replacements agreed a price for the full restoration of the floor. After doing some research I managed to find suitable replacements with a company called Original Style and the work was scheduled for the following month.

Cleaning/Repairing a Victorian Tiled Hallway Floor

Firstly, we prepared all areas with protective tapes to threshold edges and skirting.
This was followed by spaying the tiles with a strong dilution of Tile Doctor Remove & Go which is product designed to remove old sealers and coatings. After about ten minutes the tiles were scrubbed with black scrubbing pads and scrubbing brushes. Fresh water was used to rinse the floor and the slurry was extracted using a wet vacuum.

The floor was inspected and then a second clean carried out, this time using Tile Doctor Pro-Clean which is a Tile and Grout cleaning agent. The same process of application was used and after rinsing and extracting the dirt the tiles were given a steam clean. This ensured all the dirt was lifted out of the pores of the tile and the floor was now as clean as it possible could be.

The next step was the remove the loose and cracked tiles using the reclaimed tiles we had sourced earlier. Some cuts were necessary to get the replacements to match the originals but overall the plan worked. A quick drying adhesive was used to secure the tiles so we could apply the grout shortly after. The whole floor was then re-grouted and cleaned off to ensure a good match. The floor was left to dry off overnight, and you could already see it was now looking considerably improved.

Sealing a Victorian Tiled Hallway Floor

Returning the next morning we checked the floor was dry using a moisture meter, this is important as to apply a sealer to damp tiles will lead to a patchy experience. All was well so we were ready to apply the sealer.

To start a single base coat of Tile Doctor Colour Grow sealer was applied to the floor and left to dry. This sealer is an impregnator that protects from within by occupying the pores in the clay tile improving colour in the process. This sealer does leave a matt finish however and the client wanted a subtle shine so one dry it was followed by four coats of Tile Doctor Seal & Go. The combination of the two sealers works really well to add long lasting protection to the tiles and provide the desired finish to the floor.

Victorian Hallway Floor Tile After Restoration Camden

The floor was much improved, and the client was delighted. The detailed pattern and colours were now much more prominent, and the hallway looked much more inviting for both the owner and their guests. For the aftercare of Victorian tiles, I recommended the use of Tile Doctor Neutral Cleaner which is pH neutral and won’t prematurely erode the life of the sealer.



Source Victorian Hallway Tile Cleaning and Restoration Service in Camden, North London

Geometric Victorian Tiled Hallway Renovated in Sedbergh, Cumbria

This beautiful Geometric Victorian Tiled Hallway at a property in the small Cumbrian town of Sedbergh had been covered by carpet and then Vinyl beneath the carpet. Far from causing an issue with the floor however it had protected the beautiful old tiles, but they needed a deep clean and seal. The client really wanted to make the most of the character features of the property and the hall floor was their first priority.

Geometric Victorian Tiled Hallway Before Cleaning Sedbergh

I discussed with the client the process of cleaning and we agreed a quote for the work, arranging a date for the work to be carried out later in the month. If you have never been Sedbergh is well worth a visit, it sits just within the Yorkshire Dales National Park at the foot of the Howgill Fells making it very popular with walkers.

Geometric Victorian Tiled Hallway Before Cleaning Sedbergh

Cleaning a Victorian Tiled Hallway Floor

The floor had a lovely decorative tile border that ran along the perimeter of the hallway however some damage had occurred when fitting central heating pipers many years earlier. There were also small holes around the edges that I suspect were used to secure the carpet gripper. To resolve this my first task was to replace the damaged tiles and fill the small holes with grout in a matching colour.

Once the repairs had set, I started the cleaning process with a coarse 200-grit Diamond pad followed by a 400-grit pad which were run over the floor using a weighed buffing machine. Only water is used during this process to add lubrication, no chemicals are needed and once done the floor is rinsed with water and the slurry removed with a wet vacuum.

The corners and edges which were are not accessible with the machine had to be done by hand, so we used small burnishing blocks for these. The Green block is great at getting the dirt off the tiles, but leaves the pores of the clay open, so this needs to be finished with the Black 100, Red 200 and Yellow 400 Diamond Block used in sequence which then matches the pores of the clay tiles in the rest of the floor.

We finished the clean, with a light acid rinse using Tile Doctor Grout Clean-up, left on the surface for no more than 5 minutes before rinsing and extracting. This process further cleans the floor and counters any potential efflorescence issues by neutralising alkaline salts in the floor. This is a common problem with old Victorian tiles which don’t have a damp-proof membrane.

Sealing a Victorian Tiled Hallway Floor

The floor was left to dry out overnight and the next day I came back to inspect the floor and make sure it was dry so it could be sealed. Usually one night to dry is fine during the summer although in the winter sometimes it takes two or even three days. Sealers don’t cure well on damp floors resulting in a patchy appearance so before sealing we always check the floor is fully dry with a damp meter in several areas. Only once we are happy that the moisture readings in the floor are below a certain level do go ahead and apply a sealer.

Geometric Victorian Tiled Hallway After Cleaning Sedbergh

To seal and protect the Victorian tile, a couple of coats of Tile Doctor Colour Grow were applied to the floor. Colour Grow is a fully breathable, colour enhancing sealer which ticks a lot of boxes for this type of floor as old floors don’t have a damp-proof membrane fitted. This is an important consideration as moisture will be also to rise through the tile from the subfloor and not get trapped underneath where it could spread to the walls. Other types of sealer such as acrylic, wax, polishes etc don’t last long if there is dampness in the floor. Tile Doctor Colour Grow copes well in these conditions and can be used in wet rooms, shower cubicles and external patio areas so its’s more than suitable for a slightly damp floor which is often the case with a Victorian base.

Geometric Victorian Tiled Hallway After Cleaning Sedbergh



Source: Victorian Tile Cleaning and Renovation Service in Sedbergh, Cumbria

Victorian Tiled Hallway Restored in Jodrell Bank Farmhouse

We received an enquiry from a client who had just brought a farmhouse with a Victorian Tiled floor close to Jodrell Bank near the village of Goostrey. Jodrell Bank is a few miles north of Homes Chapel and famous around the world for the nearby Jodrell Bank Observatory which is an astrophysics centre and part of the University of Manchester.

Victorian Tiled Hallway Before Restoration Jodrell Bank

On restoring the farmhouse, the client discovered a Victorian tiled floor hidden under their hall carpet and wondered if it was worth saving. I rang the client up to arrange a day to do a test clean and talk through the process of restoring the floor. Turns out the floor was looking washed out and there were a few tiles that would need replacing. I went over to survey the floor and complete a test clean which worked out well. Certainly, the client was happy with the result and could now see the floors potential, so a date was arranged to start work.

Victorian Tiled Hallway Before Restoration Jodrell Bank Zoom

Cleaning/Repairing a Farmhouse Victorian Tiled Hallway Floor

The first job was to cut out the damaged tiles and replace them, this was done using spare tiles I had been saving over the years for replacements and they were fixed using rapid set tile adhesive which meant I was able to start cleaning the floor after two hours.

To get the years of ingrained dirt out of the tiles I used Tile Doctor Acid Gel which is a blend of phosphoric and hydrochloric acids in a gel form, so it stays on top of the tiles and does not run off. This was left to dwell for a good ten minutes before scrubbing the floor using a weighted floor buffer fitted with a 200-grit resurfacing pad. A little water was used to lubricate the resurfacing pad and dilute the acid gel which helps stop efflorescence which is often a problem with floors of this age. The solution soon turned into a dark slurry which was then removed using a vet vacuum.

The next step was to repeat the process using more water and a 400-grit burnishing pad which refines the surface after the application of the coarser 200-grit pad. After more rinsing and extracting the floor was wiped using a microfibre cloth and then left to dry out overnight so it would be ready for sealing the next day.

Sealing a Farmhouse Victorian Tiled Hallway Floor

The next morning, I took a couple of moisture readings with a damp meter to make sure the floor was dry and ready to seal. The results were good so three coats of Tile Doctor Seal and Go Extra were applied using a clean microfibre cloth rubbing in circles to blend the polymers together to leave a semi sheen to the floor. I chose Seal and Go Extra due to the fact that it’s a breathable sealer that will cope with any moisture rising through the floor, this is an important consideration with old floors as they don’t have a damp-proof membrane installed under the floor.

Victorian Tiled Hallway After Restoration Jodrell Bank Zoom

The client was very satisfied with the restoration, it looked better than they had expected and of course a lot nicer than the previous hall carpet! I recommended they should use Tile Doctor Neutral Tile Cleaner to maintain the floor which is pH neutral and will ensure the longevity of the seal we had applied.

Victorian Tiled Hallway After Restoration Jodrell Bank



Source: Victorian Tile Cleaning and Restoration Service in Jodrell Bank, Cheshire

Cleaning and Sealing a Victorian Tiled Hallway in Girton, Cambridge

The owner of this Victorian tiled hallway floor at a house in the village of Girton was unhappy with its condition and asked if we could call round and quote for having it deep cleaned and resealed. Girton is just north of Cambridge and only about six miles from our base so it wasn’t long before I was able to call in and survey the floor.

Victorian Tiled Hallway Before Cleaning Girton

The floor was comprised of a combination of Red, Black and Cream tiles laid in a diamond pattern. The tiles were in good physical condition and I understand from the owner that it had been last cleaned and sealed about two years prior. Unfortunately, the sealer had now faded and had allowed dirt to become trapped in the pores of the tile giving it a grubby appearance that was difficult to clean effectively. The owner had two large dogs which I suspect contributed to the premature degradation of the sealer.

Victorian Tiled Hallway Before Cleaning Girton Victorian Tiled Hallway Before Cleaning Girton

I surveyed the floor, created a quote which was accepted and then agreed a date to return and renovate the floor.

Repairing a Victorian Tiled Hallway Floor

On my return I started by taping up the skirting boards and other woodwork with protective tape. Once that was done, I gave the tiles a soak in a medium dilution of Tile Doctor Remove and Go which was allowed to dwell for ten minutes before being scrubbed in using a black scrubbing pad fitted to a rotary floor buffer. Remove and Go is a coatings remover which cleans the tiles and removes any remaining sealer.

The soil generated was extracted off the floor using a wet vacuum and the tiles inspected. The tiles had responded well to the cleaning process and after spot treating a few areas with a repeat of the previous process it was ready for the next stage which was to give the floor an acid wash.

I had noticed there was a slight build-up of efflorescence along one of the walls which isn’t unusual on these old floors where no damp proof membrane has been installed under the floor. It’s caused by moisture rising through the tile and depositing white salt staining on the surface as it evaporates. To resolve this, we neutralise the salts by giving the floor a quick rinse in a dilution of Grout Clean-up.

The Grout Clean-Up rinsed off the floor with water and extracted with the wet vacuum which was employed to get the floor as dry as possible before leaving for the evening.

Sealing Victorian Hallway Tiles

The floor was left to dry off fully overnight and I returned the next day, unfortunately after checking the moisture levels I found it needed more drying time, so I agreed to come back the next day.

The moisture levels were fine on day three, so I applied multiple coats of Tile Doctor Seal and Go. Seal and Go is a water-based product so you don’t get left with a smell as it dries. As well as protecting the tiles the sealer also adds a nice subtle sheen that works well on Victorian Tiles and has put new life into the tiled hallway.

Victorian Tiled Hallway After Cleaning Girton Victorian Tiled Hallway After Cleaning Girton

Seal and Go is a breathable sealer so it will allow moisture to rise up through the tiles however had the efflorescence problem had been worse I would have used a different sealer. On this occasion however the problem appeared to be historical rather than recent.

My client was very happy with the transformation and left the following feedback.

“We are delighted with our Victorian tiled hall floor after treatment by Tom from Tile Doctor. A very professional service. Good communication throughout, and dedication to ensuring our full satisfaction; not a ways obvious when dealing with old tiles with different levels of porosity! Thank You!”

Victorian Tiled Hallway After Cleaning Girton



Source: Victorian Tile Cleaning and Sealing Service in Girton, Cambridge

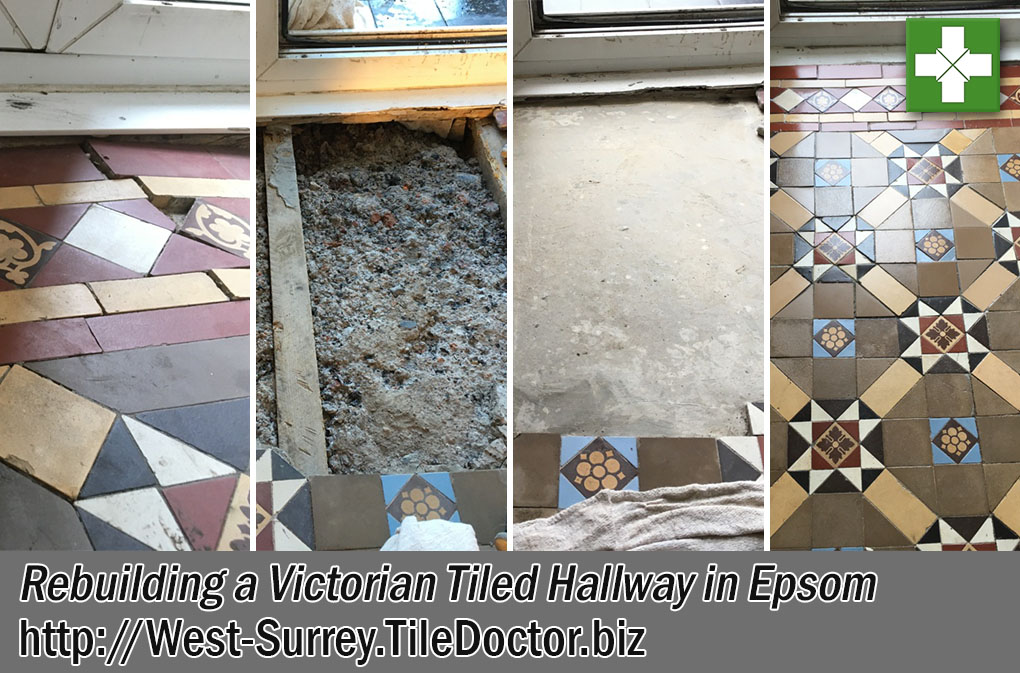

Rebuilding a Damaged Victorian Tiled Hallway in Epsom

A customer from Epsom called me regarding the restoration of her Victorian tiled hallway which was previously covered in carpet and in a poor state of health. Intrigued and having spoken on the phone I agreed a time to call in and survey the floor and work out a way forward. I visited the property and could immediately see considerable repair work including resolving problems with the sub floor and tile replacement would be required and all this before cleaning and sealing.

Victorian Tiled Hallway Floor Before Rebuild in Epsom

This house had undergone some serious renovations recently and the floor was left till last. I’m not a structural engineer so was unable to advise what had happened to the floor, but all the faults appeared to run in a line from the kitchen to the front door. It was an old house so who knows what might have caused it, it might even have been bomb damage from the 2nd world war.

There were three main problem areas. The worst was by the front door where an area of about a metre square was just loose tiles and laid on rubble. The family had got used to jumping across the threshold so as not to make the problem worse. Next was a strip through the middle that was totally exposed and a massive trip hazard. The floor boards were visible as was the floor base. There was another area by the front room entrance that had some loose pattern tiles that clunked every time someone entered the room. Finally, there was a small area to the entrance to the basement that had been patched in with cement.

Victorian Tiled Hallway Floor Before Rebuild in Epsom Victorian Tiled Hallway Floor Before Rebuild in Epsom

It was clearly going to be a challenging restoration for several reasons. Had the customer kept all the loose tiles? If not, could I source matching replacements? Would it be possible to level the floor that appeared to be sloping towards the front door? Could I remove loose and broken tiles without disturbing others? Could I manage the customers high expectations?

Having worked on numerous Victorian floor restorations in the past I knew where I could potentially source replacement tiles. I also had the full backing of the Tile Doctor network so knew I could always reach out to other Tile Doctors should I face any major problems. Undaunted we agreed a date for me to return and start the work and in the mean time I would talk to several specialist tile suppliers about replacements.

Rebuilding a Victorian Tiled Hallway Floor

Before starting any tiling work, I photographed the whole floor extensively from different angles so I would have something to refer to later. Then I removed all the loose tiles placing them in buckets for further cleaning. I now had three areas that I could see beneath the floor boards and another area of cement that I broke up using a chisel drill. In total I filled six buckets with rubble and broken tiles, all of which were taken off site and disposed of at a local recycling centre.

Victorian Tiled Hallway Floor During Rebuild in Epsom Victorian Tiled Hallway Floor During Rebuild in Epsom

The next step was to ensure I had a level and flat base in the newly exposed areas on which to lay the tiles. I managed this by laying down a self-levelling compound. The compound is mixed in a bucket and poured into the holes up to the required level allowing gravity to do the levelling work for you. It is then left to dry and harden overnight.

Victorian Tiled Hallway Floor During Rebuild in Epsom Victorian Tiled Hallway Floor During Rebuild in Epsom

The next day I started by re-fixing the loose tiles in areas where the subfloor was still solid. Close packed Victorian tiles are very tough but can be brittle, often removing a single tile can cause chips or break surrounding tiles. I always buy more replicas than the job requires for this very reason. This can be very frustrating work, so I find its best approach is to remove as few tiles as possible. I explained to the customer that the floor is over 100 years old and some chips and scratches give the floor character. Perfection is an unrealistic expectation where some marks are permanent.

Part of the other renovations included the removal of two antique radiators leaving some strips of carpet and adhesive attached to the floor. I removed this using a strong mixture of tile doctor remove and go and a little encouragement from a 50-grit diamond block.

The preparation continued with the cleaning up of the three buckets of tiles recovered at the beginning of the restoration. Old adhesive and cement must be removed before refitting to ensure they can be laid flush to the adjacent tiles. Luckily for me the weather was warm and sunny, so I sat on the garden wall for the afternoon using a combination of a wet tile cutter, Fein tool and diamond blocks to get them clean while I took in the sun.

Victorian Tiled Hallway Floor During Rebuild in Epsom

The next day was spent re-laying the tiles. The tiles are in an intricate pattern and in various shapes and sizes. The main area by the front door took all day. The difference in thickness between the original and replacement tiles made the work particularly difficult. Interested neighbours came and went commenting on my progress throughout.

Victorian Tiled Hallway Floor During Rebuild in Epsom

Cleaning a Victorian Tiled Hallway Floor

The next day I soaked all the tiles with tile doctor Acid Gel and left to dwell for 30 minutes. This was to work into the porous areas and to break down years of dirt. Then attaching a very coarse 100-grit diamond encrusted pad attached to a rotary floor machine I cleaned the tiles with a dilution of Tile Doctor Pro-Clean. This process skims away a small layer of the tiles thus the dirt too. All the soil was extracted from the floor using a wet vacuum. I repeated this process twice for maximum effect. The customer was amazed at the result and I wasn’t finished yet. When wet the contrast between the white tiles and dark were astonishing, however this was temporary so I made sure the customer aware that without a sealer they would look washed out and colourless. I left the scene overnight with a couple of warm air movers in place to fully dry out the tiles.

Sealing a Victorian Tiled Floor

The tiles need to be dry before sealing so the next day my first action was to test the floor for moisture using a damp meter. They passed and were ready to take a sealer, so I discussed the different options and finishes with the customer. It was a very interesting house, full of retro artefacts so we needed something that would blend in, more importantly she had four children and a husband who bought a cycle through the house twice a day. I recommended Tile doctor seal and Go Extra. It’s super tough, offering great protection and gives a subtle sheen that I felt would suit the house. Three coats later and I was done, closing the door behind me as everyone was at school and work

Victorian Tiled Hallway Floor After Rebuild in Epsom Victorian Tiled Hallway Floor After Rebuild in Epsom

I popped back later that evening to discuss the job. The newly applied sealer had intensified the depth of colour in the Victorian tiles and returned the brightness to the floor. She was very pleased and even gave me a carrot cake to take home with me.

Victorian Tiled Hallway Floor After Rebuild in Epsom



Source: Victorian Tile Cleaning and Restoration Service in Epsom Surrey

Repair and Renovation of a Victorian Tiled Hallway in Doncaster

This beautiful Victorian tiled hallway was in desperate need of some TLC. The house had recently changed hands and the new owners of the house were having the entire property renovated. The last part of the renovation plan was to have the Victorian hallway tiles restoring back to their former glory. Floors are always best left until last, especially hallways as last as workmen don’t usually take a lot of care in my experience.

The house was built in the early 1900’s and was situated close to Doncaster town centre a couple of streets away in fact from the famous Doncaster Racecourse which dates to the late 1500’s.

Victorian Hallway Tiles Before Renovation Doncaster

Cleaning/Repairing a Victorian Tiled Hallway Floor

There were a few areas of damage to the floor that would need dealing with first. This is not surprising given the age of the floor which must have seen a lot of comings and goings over the years. Our first task therefore was to repair the damage using replica tiles sourced to be as close a match to the originals as possible. We usually find any slight differences disappear once the floor has been deep cleaned and sealed. Once removing the damaged tile and cleaning the base we use a fast setting adhesive to fix the replacement tiles in place so we can get on with the cleaning as soon as possible.

Victorian Tiled Hallway Floor Repair Doncaster

Once the replacement tiles had set, we unloaded our slow speed rotary floor machine and large wet vacuum which would be used during the cleaning. To start the cleaning the floor was sprayed with Tile Doctor Remove & Go and this was left to dwell on the tiles for twenty minutes. This gives time for the product to break down old floor coatings and grime, this was followed by scrubbing the tiles with a 200-grit diamond pad fitted to the floor machine and assisted with the addition of more water to help lubricate the process. This process generates a lot of slurry as the dirt and old sealers etc are released from the tiles and this is extracted from the surface of the floor using the wet vacuum.

The next step was to give the floor an acid wash using Tile Doctor Acid Gel which is applied to the tiles and left to dwell for fifteen minutes and scrubbed in again with the floor buffer and 200-grit diamond pad. Once done the floor was rinsed with water and then dried using the wet vacuum to extract as much moisture as possible. This last process is designed to counter any alkaline salts that may be present in the floor which may cause efflorescence to appear later. It also removes old mineral deposits and generally get the tiles looking much brighter. Once complete the floor was left to dry off naturally overnight.

Sealing a Victorian Tiled Hallway Floor

I came back the next day to seal the tiles first checking the floor was dry using a moisture meter. Satisfied that the floor was ready for sealing I started to seal the tiles using multiple coats of Tile Doctor Seal and Go Extra which is a fully breathable sealer which is important for old floors like this. Seal and Go Extra also leaves a lovely satin finish which works well on Victorian tiles and brings the floor alive.

Victorian Hallway Tiles After Renovation Doncaster

This was the last step in this properties renovation, and I think you will agree that the floor responded really well to the restoration process and the colours in the tiles are now very vibrant.



Source: Victorian Tile Cleaning and Sealing Service in Doncaster, South Yorkshire

Old Tiled Hallway Restored at Victorian House in Erdington, Birmingham

This customer from the Birmingham suburb of Erdington contacted me about an old tiled floor they had discovered in the hallway of their Victorian house whilst doing some renovation work. The tiles were in quite a state with ingrained dirt, adhesive, paint and some tiles were loose and cracked. The floor was so bad they were considering scrapping it and contacted Tile Doctor as a last resort just in case we could do something with it.

Victorian Tiled Hallway Before Restoration Erdington Victorian Tiled Hallway Before Restoration Erdington

I went over to take a look and could see that as well as the problems reported to me over the phone that the tiles were also imprinted with what appeared to be the pattern of the underlay that must have covered the floor previously. Curiously there were some tiles by the front door which had what appeared to be holes drilled into them. There was also a porch area in front of the main entrance that needed renovating.

Victorian Tiled Porch Before Restoration Erdington

However, I have in fact seen floors in worse state that this one and was confident I could restore it. I worked out a quote for doing the work which was accepted, and the job was booked in for a future date.

Cleaning Original Victorian Tiles

My first task was to carefully scrape off as much of the paint and adhesive as possible using a sharp knife. Then it was cleaned with a 200-grit diamond pad fitted to a weighted rotary machine, this gets into the pores of the tiles which hang on to the dirt and loosens the grime and dirt, it also helps to grind off the pattern left by the rubber underlay. The pads struggle to get into the edges of the floor so that was cleaned by hand with diamond blocks. Once I was happy the floor the soil was rinsed off with water and then extracted with a wet vacuum.

Victorian Tiled Hallway During Restoration Erdington

Next, I gave the floor an acid rinse with Tile Doctor Grout Clean-up scrubbed in with a 200-grit diamond pad again. This helped remove more dirt as well as helping to neutralize salt and mineral issues that may be present in the floor. This can be a big problem with old floors due to the lack of a damp proof membrane.

After rinsing and extracting again, I dried the floor off and went about resetting loose tiles and replacing some with replica tiles. These were grouted in along with other areas where the grout was loose and need of re-grouting.

Sealing Original Victorian Tiles

I left the floor to dry out thorough for a couple of day and then returned to seal the tiles first checking with a moisture meter that the floor was dry. We always ensure that floors are completely dry before sealing them as excess moisture can damage the performance of the sealer.

I found no evidence of dampness in the floor, so it was sealed with multiple coats of Tile Doctor Seal and Go which will add protection and works really well on old Victorian tiles where it adds a nice subtle sheen appearance. Also, being water based it doesn’t leave a smell as it dries. For the porch area which was partly open to the elements I used Tile Doctor Seal and Go Extra which is a fully breathable sealer that will cope well with the damp conditions.

Victorian Tiled Hallway After Restoration Erdington Victorian Tiled Hallway After Restoration Erdington

The floor was unrecognisable from before and the customer was very happy with the transformation. Before leaving I left the customer with a bottle of Neutral pH tile cleaner that they can use going forward to help maintain the tiles appearance.

Victorian Tiled Porch After Restoration Erdington



Source: Victorian Tile Cleaning and Restoration Service in Erdington, Surrey

Repair and Restoration of a Victorian Tiled Hallway in Great Paxton, Cambridgeshire

I was called out to a house in the Village of Great Paxton to quote for deep cleaning a sealing a Victorian tiled hallway floor, there was also a triangular cemented section at the bottom of the stairs that the owner wanted retiling to match.

Victorian Tiled Hallway Before Restoration Great Paxton Victorian Tiled Hallway Before Cleaning and Repair Great Paxton

Fortunately, the owner had discovered some spare tiles in the under-stair cupboard that would do the job; were not sure why this triangular section had been cemented in at some point in the past, but I was happy that the spare tiles would be enough to cover. My quote was accepted, and it wasn’t long before I was able to return to carry out the renovation.

Repairing a Victorian Tiled Hallway Floor

I started by taping up the skirting boars and other woodwork with protective tape. Once that was done I removed the triangular section of cement at the foot of the stairs. I noticed that the sub floor consisted of rubble and sand so once removed I was able to lay a section of a damp prof membrane and then back filled with self-levelling compound.

Victorian Tiled Hallway During Cleaning and Repair Great Paxton

Once the levelling compound had dried I laid the tiles that the owner had found under the stairs continuing the black and red diamond pattern. I used a quick setting adhesive which enabled me to grout the tiles in before leaving for the day and leave it to set overnight.

Deep Cleaning a Victorian Tiled Hallway Floor

Day two was begun by inspecting the previous day’s work to make sure all was well with the tiling and then continuing the restoration of the floor. In general, the tiles were dirty and had white paint splashed from decorating and so were now looking dull and faded. To remove the ingrained dirt, I gave the tiles a soak in a medium dilution of Tile Doctor Remove and Go which was scrubbed in using a black scrubbing pad fitted to a rotary floor buffer. This process did a good job of removing the dirt and softened the paint splashes which I was then able to carefully scrape off.

After rinsing the floor with water and extracting the soil with a wet vacuum I could see the tiles were much cleaner but needed more work to get the replacement section to blend better with the existing. To resolve this, I honed the surface of the tiles with a 100-grit and then 200-grit pad rinsing with water and extracting after each pad.

Sealing Victorian Hallway Tiles

The floor was left to dry off fully overnight and I returned the next day to apply a sealer that would add colour and protect the tiles going forward. Multiple coats of Tile Doctor Seal and Go were applied which a water-based product that adds a nice subtle sheen to the floor which works well on Victorian Tiles and put new life into the tiles.

Victorian Tiled Hallway After Restoration Great Paxton Victorian Tiled Hallway After Cleaning and Repair Great Paxton

My customer was very happy with the transformation and left the following feedback.

“We are very pleased with the restoration of our Victorian tiles in the hallway. We are also very pleased with the service and quality of the works carried out.”



Source: Victorian Tile Repair and Restoration Service in Great Paxton, Cambridgeshire

Renovating Old Church Tiles in Rugby, Warwickshire

I was called out to repair and clean a lovely Victorian tiled floor at St’ Chads which is a small church in Rugby, a market town in Warwickshire and well known for being the birthplace of Rugby Football. There were two areas requiring attention, both with different patterned tiles.

St Chads Church Rugby Internal

The floor had been patch repaired in the past and the tiles were now lifting and becoming loose due to efflorescent salts getting between the tiles. Damp can be a big problem with these old floors where no damp proof membrane has been fitted and I suspect a non-breathable sealer had been used previously, resulting in moisture being trapped under the tile.

Victorian Church Floor Rugby Before Repair

It’s lovely when I get to work in a property such as this, it makes a change from doing residential properties. I was confident I would be able to resolve the problems, and I was given the keys and time just to get on with it.

St Chads Church Rugby External

Cleaning and Repairing a Victorian Tiled Church Floor

I’m always on the lookout for reclaimed tiles on eBay so I was luckily able to repair the floor using some tiles from my collection which matched the existing and also some of the new ones that were fitted after the floor was repaired. Once the tile adhesive had set the tiles were grouted in using a matching grout. I managed to make the repairs in the morning and moved onto cleaning the floor in the afternoon once I was sure the adhesive and grout had set.

Victorian Church Floor Rugby During Repair

Concerned about adding moisture to the floor I opted to scrub the tiles with Tile Doctor Acid Gel which being an acid would counter any alkaline salts inherent in the floor and also deal with grout smears as well. After scrubbing the tiles with the Tile Doctor Acid Gel the soiled product was extracted using an industrial wet vacuum and then the floor was given a quick rinse with water which again was extracted using the wet vacuum.

To ensure there was no increase in the level of dampness in the floor I took moisture readings before and after the cleaning process. I then left the floor to dry out for a few days.

Victorian Church Floor After Repairs

Sealing a Victorian Tiled Church Floor

When I returned I first checked the tiles were dry using the damp meter and verified that they had returned to the baseline level I took at the start. With all being well I applied several coats of sealer to the floor. Given the issue with the tiles lifting previously I was keen not to repeat the previous issue and used Tile Doctor Seal and Go Extra which is a fully breathable sealer ideal for floors where damp can be a problem. This gave the tiles a nice natural sheen and allowed the colours to shine through.

Victorian Church Floor After Restoration Victorian Church Floor Rugby After Restoration

The parishioners were very happy with the repairs to the floor and to see their lovely church restored.



Source: Church Tile Repair and Renovation Service in Warwickshire

Classic Victorian Tiled Hallway Floor Restored in Lancaster

We often get asked to restore old Victorian tiled floors which are generally over 100 to 150 years old and as I’m sure you can imagine they experience a lot of wear over that length of time.

Victorian floor tiles before restoration Lancaster

We recently visited a property with such a floor in Lancaster after the client got in touch looking to have their hallway floor tiles restored. We arrived to inspect the floor and could see straight away that it was looking a little tired and in need of care and attention. Some tiles had become loose and had broken apart, especially around the doorways. Also, this floor had suffered from subsidence in the past and this had created a crack line near the top end of the hallway which pushed up several of the tiles. We went through what could be done to restore it, the client agreed a price and we arranged a time to come back.

Cleaning and Repairing a Victorian Tiled Hallway Floor

My first task was to take the loose tiles up, grind the concrete screed back so it was as level as we could make it and then we needed to refit the tiles. Once all loose tiles were fixed, we left them to dry and cure.

Victorian floor tiles during restoration Lancaster

We then came back to start the main clean of the floor, we used Tile Doctor Diamond Burnishing pads for this, which bite in deep to the clay face and remove ingrained dirt far better than conventional alkaline cleaners can. We used a series of different grades of these diamond pads to get the finish we required and then rinsed with clean water once were finished, removing the slurry created with a wet vacuum.

Any areas we couldn’t reach with our weighted buffing machines we had to get on our hands and knees and use small handheld Diamond Blocks, using a bit of clean water and elbow grease, this is especially good on intricate edges and around doors and corners.

Victorian floor tiles during restoration Lancaster

The floor was given a quick rinse with water to remove any remaining clay resin and soil generated by the burnishing process. A wet vacuum is then used to extract the soil and remove as much moisture from the floor before being left to dry off fully overnight.

Sealing a Victorian Tiled Hallway Floor

Before we seal the Victorian Tiles, they looked very dull and washed out however this all changes once we apply the sealer. We checked the moisture levels in the floor which were fine. Our favourite sealer for this type of tile is called Tile Doctor Colour Grow, this is a fully breathable sealer which restores the colour lost in the cleaning process and allows for the floor to breathe, which is an absolutely necesity on an old floor without a Damp Proof Membrane where Efflorescence can be an problem.

Tile Doctor Colour Grow is an impregnating sealer that works by occupying the pores in the tile, so dirt cannot become ingrained there. It leaves a matt finish and enhances the colours in the tile bringing them to life, as you will see on the photos.

Victorian floor tiles after restoration Lancaster

For aftercare we always advise our customers to use Tile Doctor pH Neutral tile cleaner as it’s specially designed for cleaning sealed surfaces without damaging the sealer like cheap supermarket cleaners that contain anionic surfactants.

The client was very pleased with the restoration of her floor which is now in good physical condition and looks much brighter.



Source: Victorian Tile Cleaning and Restoration Service in Lancaster, Lancashire

Removing Cement Screed from Victorian Tiles in Bearwood, Birmingham

This customer got in touch with me to see if there was anything I could do to restore a Victorian tiled floor they had discovered under carpet in their hallway. Interestingly they had been told previously that the floor was beyond repair and had been quoted thousands of pounds to have it completely ripped up and replaced.

Victorian Hallway Before Restoration Bearwood Victorian Hallway Before Restoration Bearwood

I visited the property in Bearwood near Smethwick, to take a look and could see that there was a section under a cement screed. The floor was in a truly sorry state, so I could see why the other company were not keen on restoring it. Undeterred I did a test clean to see if I could remove the screed which was encouraging however without removing all the screed it would not be possible to see what condition the tiles underneath were in. I agreed with the customer to order some replacement tiles which were needed along with extra ones just in case. The job would take a few days to allow for cleaning, repairing, drying out and sealing. The client wasn’t too optimistic, but I reassured them we could definitely get a good result.

Victorian Hallway Before Restoration Bearwood

Cleaning and Repairing a Victorian Tiled Hallway

The first day was spent removing the cement screed which was quite thick in parts, so I went down the route of steaming it first to help soften the covering and then carefully scraping it off. This was quite labour intensive, but it did the job. Once the cement was removed I was left with some tiles that were ok but quite a few needed to be replaced.

Victorian Hallway During Restoration Bearwood Victorian Hallway During Restoration Bearwood

There were also two doorways, one that needed completely relaying and one needed part relaying. Some of the tiles needed to be cut to size, there were many tiles that needed resetting and re-grouting along with grout being applied to the new tiles.

Victorian Hallway During Restoration Bearwood

The next day the tiles were deep cleaned with a 50:50 combination of Tile Doctor Pro-Clean mixed with Nanotech HBU which stands for Heavy Build-Up Remover, which was quite appropriate in this case. This cocktail of tile cleaning products was left to dwell on the tiles for a while then worked in with a black scrubbing pad fitted to a weighted rotary machine. The floor was then rinsed off with water and then the soil extracted with a wet vacuum.

My next step was to give the floor and acid wash to remove any old grout smears and neutralise other mineral contaminates such as salts that can get deposited on the surface of the tiles as moisture evaporates as the floor dries. This is always a risk with old floors where no damp proof membrane exists. To do this I applied a dilution of Tile Doctor Grout Clean-Up which is scrubbed into the tiles with a deck brush and then rinsed off the floor with water and a wet vacuum. The floor was then left to dry out for a couple of days.

Sealing a Victorian Tiled Hallway Floor

I returned to seal the floor and after check it had dried sufficiently applied three coats of Tile Doctor Colour Grow sealer. This sealer seeps into the pores of the tile enhancing the colours and leaves a matt finish which the customer had previously specified. The floor was then buffed with a white pad and the customer left with a bottle of Tile Doctor Neutral Tile Cleaner to clean the floor with moving forward.

Victorian Hallway After Restoration Bearwood Victorian Hallway After Restoration Bearwood

The customer was delighted with the results and left the following feedback on the Tile Doctor feedback system.

“Kieron has done a fantastic job of our Victorian hallway tiles. We had been quoted several really high prices by other companies, but Kieron’s quote was a fraction of these. I initially wondered whether this meant the job wouldn’t be as good but after 3 days of solid work the results are fantastic! He managed to transform it to its former glory, a hallway that was partly cemented over, had missing and loose tiles all over the place and was filthy. He definitely does a lot more than just cleaning! We couldn’t be happier with the results!”

Victorian Hallway After Restoration Bearwood



Source: Victorian Tile Cleaning and Restoration Service in Bearwood, Birmingham

Restoring a Victorian Tiled Hallway Covered with Self Levelling Compound in Yorkshire

Our client in Rotherham had decided to install a new floor in their hallway and after removing many layers of old floor coverings discovered a layer of self-levelling compound underneath. After deciding to chip some of this away they discovered what appeared to be an original Victorian tiled floor. Realising that original features like these are very desirable they decided to call in Tile Doctor to see if it could be restored.

Victorian Tiled Hallway Floor Covered in Self-Leveller Before Restoration Victorian Tiled Hallway Before Restoration Rotherham

Being the local agent for Tile Doctor I was asked to look at the floor and quote for doing the work. I could see this was going to take some time to do properly, the floor was quite seriously damaged, a big area of tiles were missing, the tiles around each doorway were heavily damaged and there were quite a few loose and cracked tiles around the edges of the floor. But we were confident this floor could be made to look amazing once again and add the original charm of this hallway back to how it was intended to be.

Victorian Tiled Hallway Before Repair and Restoration Rotherham

Repairing a Victorian Tiled Hallway Floor

The first course of action was to make the tile repairs which included digging out and rebuilding the sub floor in some areas.

Victorian Tiled Hallway During Subfloor Repair Rotherham Victorian Tiled Hallway During Restoration Rotherham

Fortunately, these black and white Victorian Tiles are fairly common, so I was able to source replacements quite easily. There was a lot of areas to cover so this step took a couple of days to complete.

Deep Cleaning a Victorian tiled floor

To get the floor clean we used a slow speed floor polisher fitted with a 200-grit diamond pad. Aided with Tile Doctor Remove and Go it proved to be an effective combination that cut through and removed the self-levelling compound, it also worked a treat at removing paint stains too.

Victorian Tiled Hallway Before Restoration Rotherham Victorian Tiled Hallway During Restoration Rotherham

The next step was to give the floor an acid wash to remove any remaining grime and dirt. To do this we applied Tile Doctor Acid Gel which being in gel form is quite easy to control. After being scrubbed into the floor it was extracted using a wet vacuum and then the floor given a thorough rinse with water to remove any traces of product.

Victorian Tiled Hallway During Acid Washing Rotherham Victorian Tiled Hallway During Acid Washing Rotherham

The wet vacuum was employed again to extract as much moisture from the floor as possible and then left to dry off fully overnight.

Sealing an Old Victorian Hallway Tiles

The next day I returned to seal the floors checking first that the tiles were dry. All was well so I began applying the sealer which in this case was Tile Doctor Colour Grow which is an impregnating sealer that works by soaking into the pores of the tile to prevent dirt from becoming ingrained there.

Victorian Tiled Hallway After Cleaning Rotherham Victorian Tiled Hallway After Restoration Rotherham

The floor was completely transformed over the course of five days and our customer was over the moon with the results calling it her ‘forever floor’.

Victorian Tiled Hallway After Repair Rotherham



Source: Victorian Tile Cleaning and Restoration Service in South Yorkshire

Full Renovation of a Victorian Tiled Hallway in Kidderminster, Worcestershire

The young couple who owned this house was in Kidderminster were expecting their first baby and wanted the original hallway floor repaired and restored in keeping with the Victorian house. Before contacting us, they had spoken with a builder who had said it was beyond repair and recommended ripping it up and laying a new floor. They were aware of the value that original features like floors can add to a property so undeterred they kept looking for a solution and found Tile Doctor.

Victorian Tiled Floor Before Restoration Kidderminster

I am the local agent for Tile Doctor in Worcestershire and specialise in the restoration of old tiled floors so after popping round to take a look I was able to confirm that their builder was wrong and there was no reason why the floor couldn’t be restored. Relieved the floor could be restored they happily asked me to do the work and we arranged a date, it also turned out that he was also a fellow Mod and scooter rider, so we had plenty to talk about.

Victorian Tiled Floor Before Restoration Kidderminster Victorian Tiled Floor Before Restoration Kidderminster

Repairing a Victorian Tiled Hallway Floor

I returned to the property a few weeks later with my tiler and we began the work of carefully inspecting the floor to identify, remove and refit loose tiles. This was followed by repairs to the screed base and then cutting new matching tiles to replace those that were missing. Having worked on old Victorian and Edwardian tiles for some years now I have built up a collection of re-claimed tiles and often scan eBay for them as I know they will come in handy at some point in the future.

The repair process took three days to complete as naturally each tile needs to set in place and can only be grouted in once the adhesive has gone off. It’s also delicate work as anything out of place in the pattern of the floor would be conspicuous obvious.

Cleaning a Victorian Tiled Hallway Floor

On the fourth day the tiling work was complete, and I set about giving the floor a thorough clean starting with the application of Tile Doctor Remove and Go to remove any remnants of sealer, paint splashes from decorating and other marks. The solution was left to soak into the tile and grout for ten minutes before being worked in with a scrubbing pad fitted to a rotary floor buffer running on slow speed. The soiled cleaning solution was rinsed off with water and extracted with a wet vacuum, any stubborn areas were then spot treated until I was happy the floor was clear.

Using the same process, the floor was then treated to an acid wash using Tile Doctor Acid Gel. This served two purposes, first and acid wash will remove any fine grout smears and second the acid will neutralise any efflorescent salts that had built up in the tiles and could cause issue later. This is a common problem with old floors as they don’t have the protection of a damp proof membrane. The floor was then carefully rinsed down with water applied using micro fibre cloths, so it wouldn’t get too damp and then left overnight to dry off fully assisted with a couple of air movers I had left in place.

Sealing a Victorian Tiled Hallway Floor

I returned the next day to seal the tiles checking first that the floor was dry by taking a few moisture readings with a damp tester. The air movers had done the job and I was able to crack on applying numerous coats of sealer which will protect the tile going forward and also enhance its appearance.

My choice of sealer was Tile Doctor Seal and Go Extra which is a fully breathable sealer that can cope with moisture rising through the tiles, it also adds a nice sheen to the tile and works extremely well on clay-based tiles such as these.

Over the course of the five days the floor was transformed, and my customer was over the moon and I was happy to have saved yet another floor.

Victorian Tiled Floor After Restoration Kidderminster Victorian Tiled Floor After Restoration Kidderminster



Source: Victorian Hallway Cleaning and Restoration Service in Kidderminster

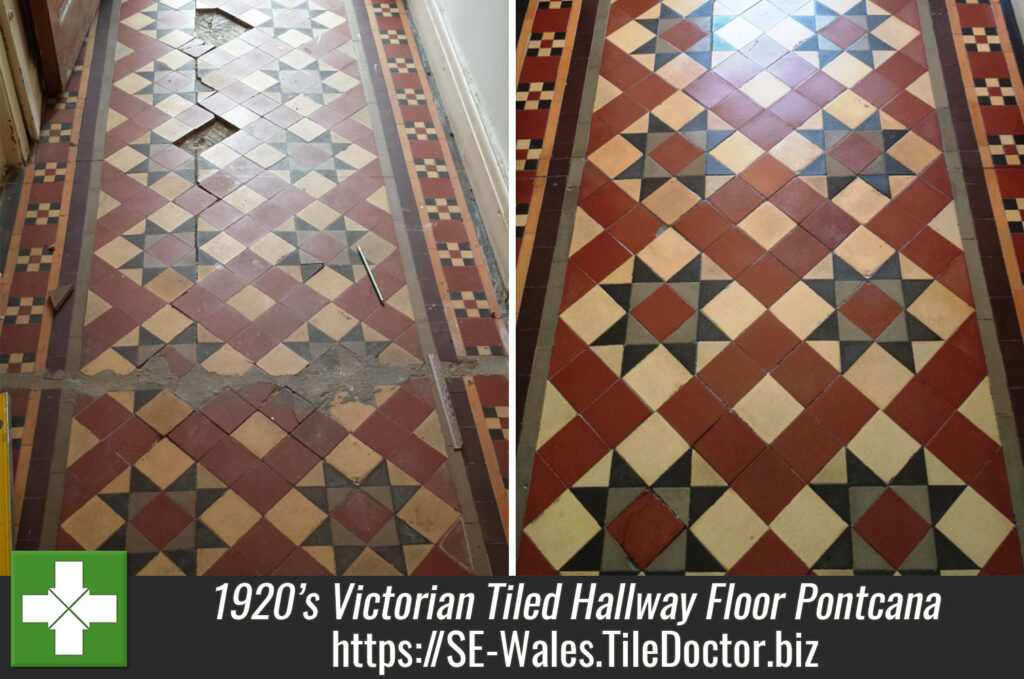

Repairing an old Victorian Tiled Hallway

The new owner of this house in Pontcana, Cardiff recently discovered a 1920’s Victorian tiled floor hidden under carpet in the hallway and was keen to restore it as an original feature. They contacted Tile Doctor to have it repaired and I popped round to do a survey. I could see there was a great deal of movement in the floor by the front door area where the old brittle cement base had buckled causing the tiles to become loose and uneven.

Victorian Tiled Floor Pontcana Before Repairs

Most contractors would consider this beyond repair however I suggested we take up the main area of buckled tiles and keep them for the repair to the centre of the hallway where a copper strip had been laid in the cement. I suggested that in the area which we lifted up the tiles by the front door that we made a mat well which not only looks good but serves a purpose and remedies the main problem of the cement base.

Repairing a Victorian Tiled Hallway Floor

The first task was to check moisture readings then to remove the tiles carefully as I could in order to save the pieces for the repair of the other damage in the centre of floor. I then chiselled the raised areas of cement away with a small Kango hammer in preparation for the self-leveller which would be needed to make the base suitable for the new doorway mat.

Victorian Tiled Floor Pontcana Starting Repairs Victorian Tiled Floor Pontcana Removing Damaged Section

Once this was done I proceeded to repair the other damaged parts of the floor using the original tiles that were now spare. I laid the tiles through the damaged areas and grouted them in.

Victorian Tiled Floor Pontcana Before Repairs Victorian Tiled Floor Pontcana During Grouting

Once the grout had gone off I was able to start cleaning the floor starting with an application of Grout Clean-Up to remove the grout smears followed by a solution of Tile Doctor HBU mixed 50/50 with Pro-Clean which was scrubbed into the tile and then rinsed off before steam cleaning the floor to make sure any dirt or trace of chemical was removed before sealing the tiles.

Victorian Tiled Floor Pontcana After Repairs

Sealing a Victorian Floor Sealing

The floor was left to dry out and I returned two days later to seal the floor checking that the moisture readings were acceptable first. To seal the floor I used six coats of Tile Doctor Seal and Go which can even make an old floor look vibrant.

Victorian Tiled Floor Pontcana After Cleaning and Sealing

The floor now looks great and I’m confident the restoration of this period feature will add value to the property.


Source: Professional Tile, Stone and Grout maintenance service in South Wales

Deep Cleaning, Sealing a Victorian floor

This Edwardian style floor had been installed in a house in Twickenham around five years prior. The floor had a number of damaged tiles which needed replacing and that it had not been professionally cleaned since being installed and the original sealer had either worn off or turned yellow.

Edwardian style tiled floor twickenham before cleaning

Cleaning Edwardian Style Tiles

Before cleaning the broken tiles, adjacent grout and tile adhesive was carefully chipped out of the floor using a hammer and chisel. Once this was done the floor was soaked with a dilution of Tile Doctor Pro-Clean which was applied with a mop and left it to dwell before being scrubbed into the tile using a rotary machine fitted with a scrubbing pad. The machine saves a lot of time however it struggles to get into the edges and corners and so it was necessary scrub those area by hand. The now soiled cleaning solution did a good job removing the dirt and old sealer and was washed away using fresh water and a wet vacuum. The tile and grout was inspected and the process repeated where required before giving the floor a final rinse to remove any trace of cleaning product. At this point the broken tiles were replaced with spares and grouted into place; the floor was then left for 48 hours so it could dry out thoroughly before sealing.

Edwardian style tiled floor twickenham after cleaning

Sealing Edwardian Style Tiles

On our return the floor was checked and then sealed with five coats of Tile Doctor Seal and Go which is a topical high sheen sealer highly recommended for these types of tiles that will enhances the look of the tile and creates a barrier against dirt and spillages.

Edwardian style tiled floor twickenham after sealing

As you can see from the picture, the floor has been restored to its original condition and with the correct maintenance; it should last for years to come.


Source: Professional Tile, Stone and Grout Cleaning service in South Middlesex

Maintaining Victorian Tiles

Details below of a bread and butter job recently completed in Coundon near Coventry to Clean, repair and seal Victorian floor tiles. I call it a bread butter job as this is something we do a lot off and have therefore become quite proficient including colour matched repairs to grout and tile replacement.

Victorian Tiles in Coundon before cleaning

Cleaning Victorian Tiles

The tiles were quite dirty and in need of a deep clean so a 50/50 mix of Tile Doctor Pro-Clean and NanoTech UltraClean was diluted with water and left to soak into the tiles for around 15 minutes before being scrubbed into the Victorian tile and grout using a slow speed rotary machine fitted with a scrubbing pad. The dirty solution was removed and the process repeated and grout lines scrubbed until I was happy the tiles were clean; this was then followed with a thorough rinse with water and a wet vacuum was used to remove the fluids and get the tile and grout as dry as possible. We have a special fan to accelerate the drying process so this switched on and moved around the floor until it was dry.

Victorian Tiles in Coundon cleaned and drying

Sealing Victorian floor tiles

Once the floor was dry we started to seal it using Tile Doctor High Shine sealer which provides stain protection as well as a very shiny finish, hopefully you can appreciate the difference in the photographs on this page.

Victorian Tiles in Coundon Cleaned and Sealed



Source: Cleaning Victorian tiles in Warwickshire
